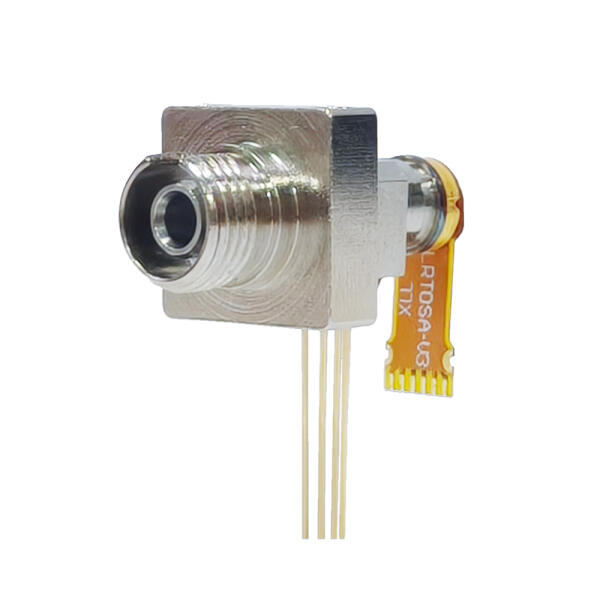

10G BOSA
10G BOSA, 1270nm / 1330nm, SMF 10KM~40KM
特點：
- Data Rate up to 10.7Gb/s ( 10G LC Mini BOSA )
- Data Rate up to 10.3125Gb/s ( 10G FC BOSA )
- 1270nm / 1330nm DFB laser transmitter and PIN-TIA receiver
- Low threshold current, High bandwidth
- LC/UPC Receptacle
- For the transmission up 10km~40km over SM fiber
- RoHS Compliant
| 詢價單 | 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 下載 |
|---|---|---|---|---|---|---|---|---|
FBML-H8-2733-10-CM1 | 10G | Tx1270nm / Rx1330nm | LC | SM 10km | 0~+70°C | 10G LC Mini BOSA Tx1270_Rx1330 |  | |
FBML-H8-3327-10-CM1 | 10G | Tx1330nm / Rx1270nm | FC | SM 10km | 0~+70°C | 10G LC Mini BOSA Tx1330_Rx1270 | | |
FBML-H4-2733-20i-MS1 | 10G | Tx1270nm / Rx1330nm | FC | SM 20km | -40~+85°C | 10G FC BOSA Tx1270_Rx1330 | | |
FBML-H4-3327-20i-MS1 | 10G | Tx1330nm / Rx1270nm | FC | SM 20km | -40~+85°C | 10G FC BOSA Tx1330_Rx1270 | | |
FBML-H4-2733-40i-MS1 | 10G | Tx1270nm / Rx1330nm | FC | SM 40km | -40~+85°C | 10G FC BOSA Tx1270_Rx1330 | |
