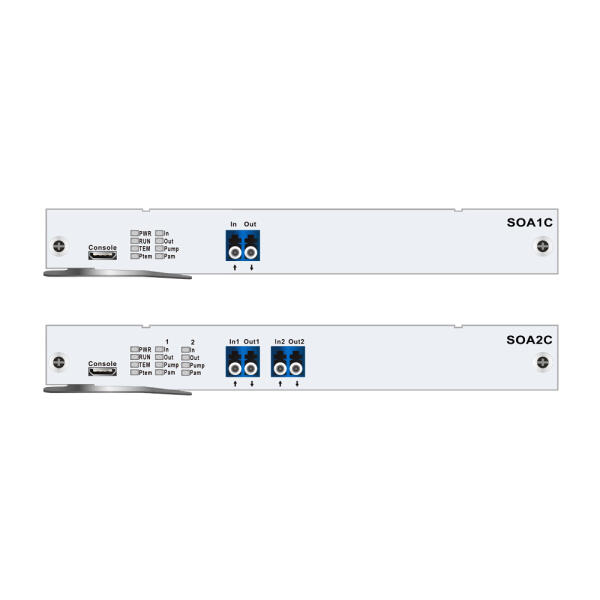

F520 SOA (Semiconductor Optical Amplifier)
F520 SOA ( Semiconductor Optical Amplifier ) Series
特點：
- Support the O-Band wavelength range of 1290~1320nm
- Support up to 160Gbps data rate
- MAX. Output Power 10dBm
- APC operation mode
- Low Noise, High Gain
- Option 1 and 2 channel of signal amplification
| 詢價單 | Parameters | Min / Typ / Max | 下載 |
|---|---|---|---|
Operating Wavelength Number of Channel (one card) Power Consumption Size Operating Temperature Storage Temperature Relative Humidity | 1290 ~ 1320nm 1 ~ 2 ≤ 15W 191(W) x 253(D) x 20(H)mm -10 ~ 60°C -40 ~ 85°C 5 ~ 95RH% |  |
