F520 OTN DWDM System

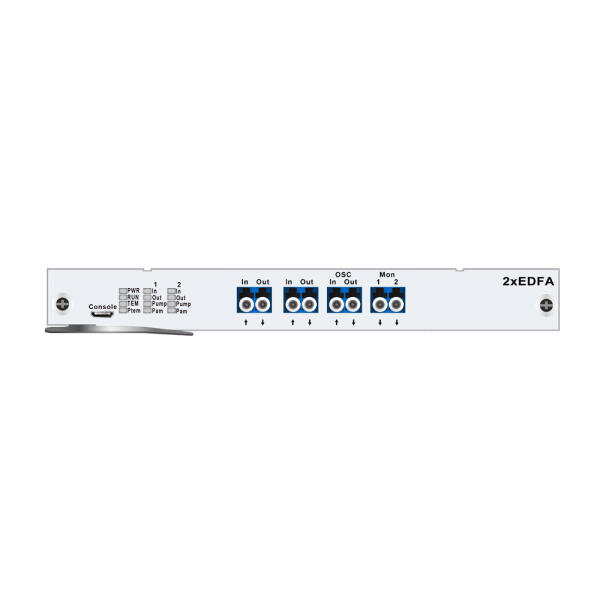

F520 EDFA (Optical Amplifier) - Two EDFA Module

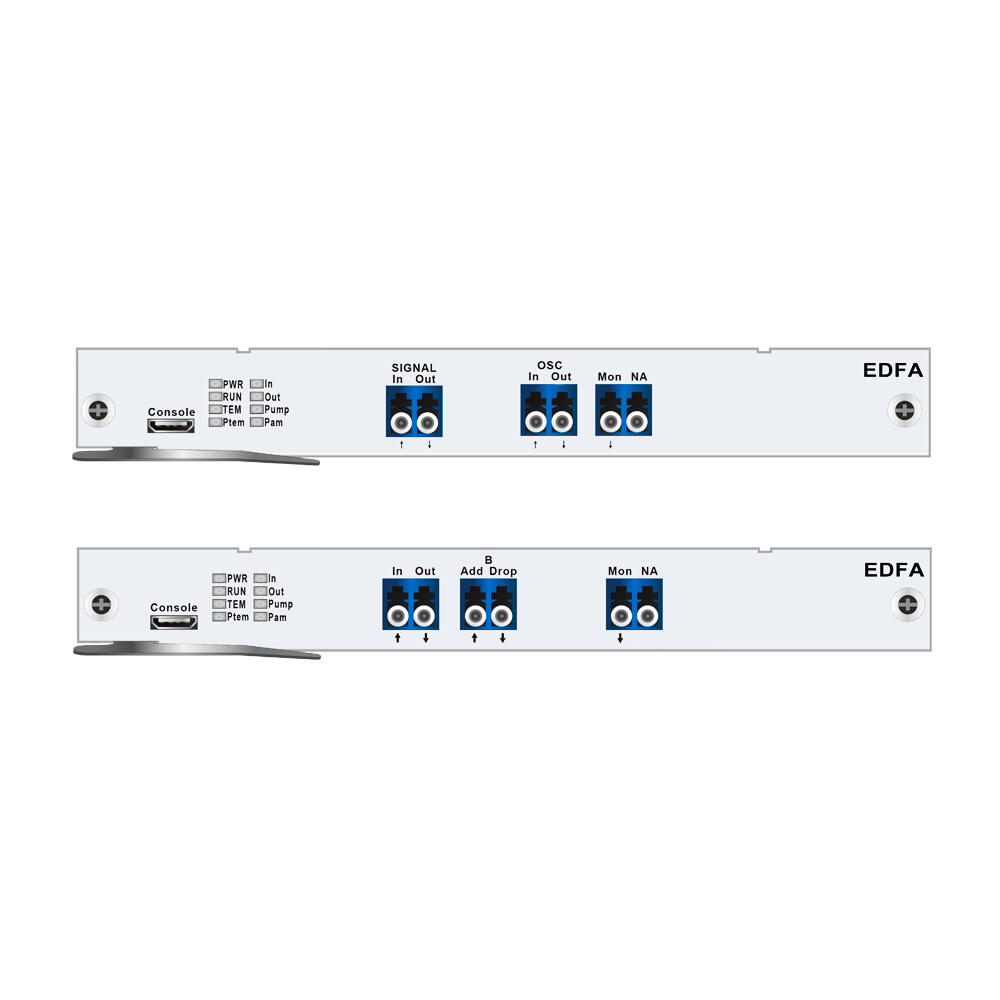

F520 EDFA ( Erbium-Doped Fiber Amplifier ) Series
Two EDFA Module
- Metro DWDM distance extension
- Single wavelength distance extension
- CATV network system
- Long-Haul transmission system
- Low noise figure : typical 5dB
- Gain Flattening Filters (GFF) assure flat Gain (<1dB variance) over the entire amplified band
- Multiple operating modes : AGC, APC, ACC
- High performance transient response control to ensure Power, Gain stable without affecting existing signal
- Support customized saturated Output Power range 13 ~ 24dBm
- Support customized Gain variety range 8 ~ 40dB
- Support Red / Blue port for single-fiber DWDM transmission system
- Optional OSC management channel for remote management
- MON own monitoring port, on-line monitoring optical power and OSNR
- Support SNMP, Web, Console management
- Support 4, 8, 20 slot chassis for different capacity requirement
