CWDM / DWDM Power Meter

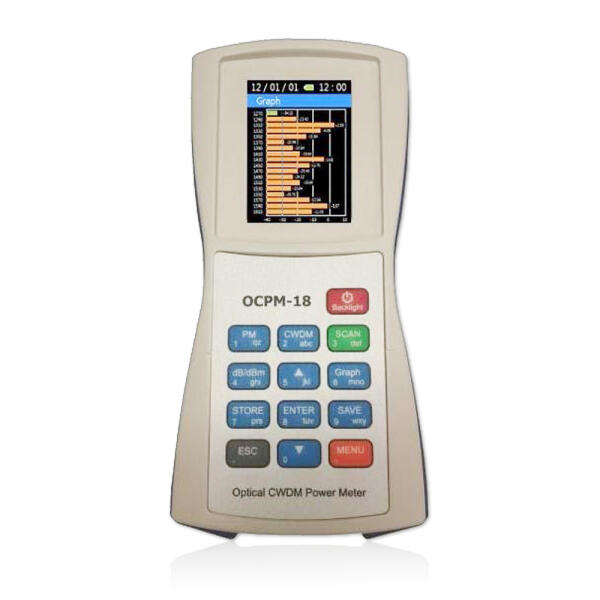

Optical CWDM Power Meter
Optical CWDM Power Meter
| Parameter | Typical | |
|---|---|---|
| Wavelength Range | 1270 ~ 1610 nm | |
| Number of Channels | 18 | |
| Measuring Wavelength (nm) | 1270/1290/1310/1330/1350/1370/1390/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610 | |
| Wavelength resolution | 20nm | |
| Dynamic range | + 10dBm to -40dBm | |
| Absolute accuracy | < ±0.5 dB | |
| Power resolution | 0.01 dB | |
| Units | dBm / dB | |
| Power supply | Rechargeable Lithium-Polymer Battery | |
| Optical interface | SC/PC (standard), FC, LC, ST available | |
| Guaranteed time of Operating | 600 min (when fully charged) | |
| Operating Temperature | 0 ~ +50 ℃ | |
| Dimension | 78 x 155 x 35 mm | |
| Weight | 250g |
- Applicable for wavelength optical network such as CWDM, LTE, WiBro, 3G/4G, FTTx
- A robust, shock-proof, splash-proof design for field operation
- Light weight for on-site measurement
- Typical 5-pin Charger and USB data cable
- Quick start operation, requiring no warm-up time and reducing testing time
