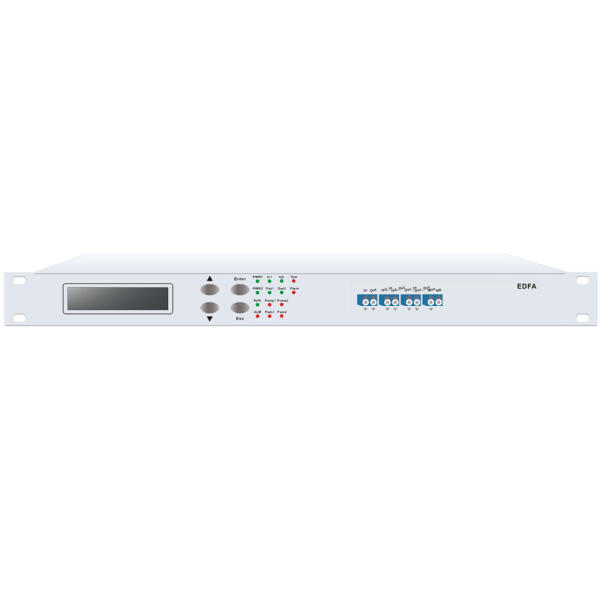

DWDM 1U Rack-Mount EDFA
DWDM 1U Rack-Mount EDFA ( Erbium-Doped Optical Fiber Amplifier )
特點：
- Fixed 1U Rack package, LC optical port
- Low Noise Figure : typical 5dB, MAX 5.5dB
- Multiple operating modes : AGC, APC, ACC
- MON port for on-line monitoring optical power and OSNR
- High performance transient response control to ensure Power, Gain stable without affecting existing signal
- Optional OSC management channel for remote management
- Support customized saturated Output Power up to +22dBm
- Support customized Gain variety range 8 ~ 35dB
- Support Red / Blue port for the single-fiber DWDM transmission systemt
- Support Mid-Stage access for the insertion of a DCM or OADM unit without its inherent loss
- Support LCD screen with Panel buttons control
- Support SNMP, Web management
- 1+1 Pluggable Redundancy Power supply, AC / DC optional
| 詢價單 | 參數 | 最小值 / 最大值 | 下載 |
|---|---|---|---|
Operating Wavelength│Standard Operating Wavelength│Extended Power Consumption Size Operating Temperature Storage Temperature Relative Humidity | 1528 ~ 1565nm 1528 ~ 1567nm ≤ 30W 442(W) x 250(D) x 44(H)mm -10 ~ +60°C -40 ~ +85°C 5 ~ 95RH% |  |
