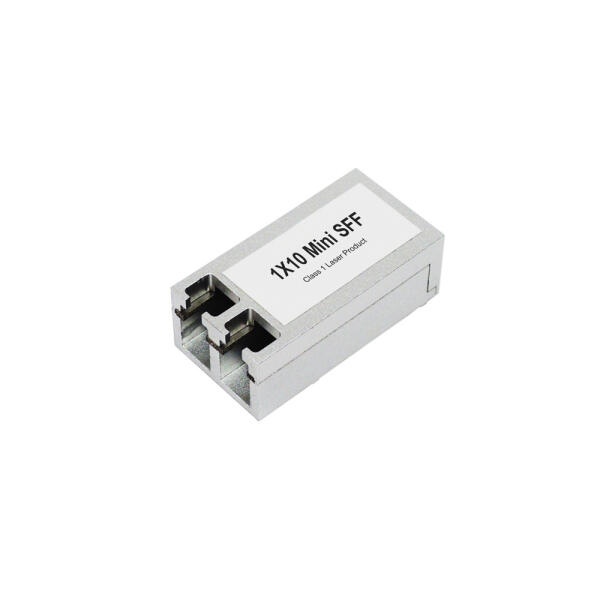

MiniSFF
10G-SR, LR
10GBASE-SR Mini SFF 光纖模組
Hot Pluggable,Duplex LC, 850nm, Multi-Mode, OM3 300M
10GBASE-LR Mini SFF 光纖模組
Hot Pluggable, Duplex LC,1310nm, Single Mode, 2km~20km
| 詢價單 | 規格 | 應用 | 特點 | 下載 |
|---|---|---|---|---|
| 產品料號資料傳輸率波長連接器傳輸距離輸出/輸入數據操作溫度備註規格書FSFM-H7-M85-X3D10G850nmDuplex LCOM3 300mAC-coupledCML0~70°CMiniSFF 1x10 10G-SR, C-TempFSFM-H7-M85-X3Di10G850nmDuplex LCOM3 300mAC-coupledCML-40~85°CMiniSFF 1x10 10G-SR, I-Temp | 10GBASE-SR/SW Ethernet @10.3125GFiber Channel 800-M5E-SN-I 8GFC @8.5G, 1200-M5E-SN-I 10GFC @10.51875GSONET OC-192 & SDH STM-64 @9.953GCPRI Option #7 @9.83G, #8 @10.1376GOTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G | Compliant with IEEE802.3ae 10GBASE-SR/SWCompliant with CPRI Option 7, 81x10 Mini SFF FootprintAluminum alloy case; Screw mountSurface mount I/O pins for high-speed signal integrity850nm VCSEL laser transmitterDuplex LC connectorAC-coupled CML Differential inputsSingle +3.3V power supplyLink distance 300m over MM OM3 fiber and 400m over MM OM4 fiberMaximum Power consumption 0.9WRoHS Compliant |
