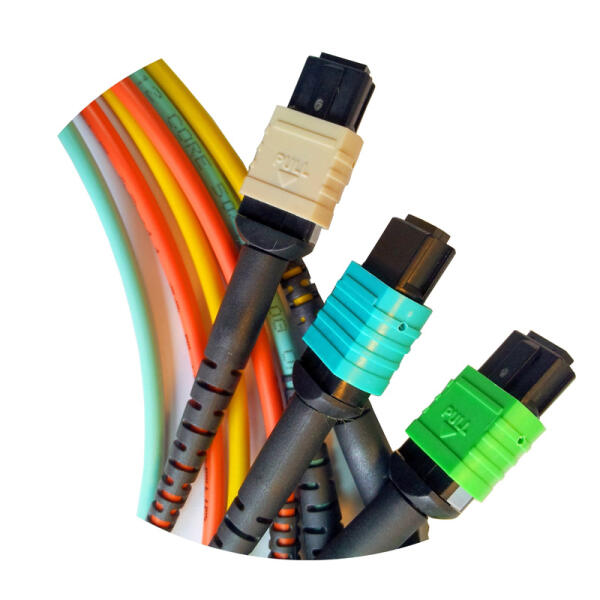

MPO Patch-cord
Fiber Optical MPO/MTP Patch-cord
| 詢價單 | Fiber Type | SM ( APC ) | MM OM1 OM2 | MM OM3 | MM OM4 | 下載 |
|---|---|---|---|---|---|---|
MPO Connector Color Operating Wavelengt MPO Insertion Standard Loss* MPO Insertion Low Loss ( Elite )* Other Connector Insertion Loss ( MAX )* Return Loss ( MAX )* MPO Fiber Heigh MPO adjacent Fiber height difference MPO all Fiber height difference MPO X / Y End-face Angel Operating Temperature | Green 1270~1610nm <=0.75dB <=0.35dB <=0.30dB <=-60dB 1000~3000nm <=200nm <=350nm -0.2 ~ 0.2 um -40 ~ +70°C | Beige 850nm / 1300nm <=0.75dB <=0.35dB <=0.30dB <=-20dB 1000~3000nm <=200nm <=350nm -0.2 ~ 0.2 um -40 ~ +70°C | Aqua 850nm / 1300nm <=0.75dB <=0.35dB <=0.30dB <=-20dB 1000~3000nm <=200nm <=350nm -0.2 ~ 0.2 um -40 ~ +70°C | Aqua or Violet 850nm / 1300nm <=0.75dB <=0.35dB <=0.30dB <=-20dB 1000~3000nm <=200nm <=350nm -0.2 ~ 0.2 um -40 ~ +70°C |  |
