| | | Fiber Type | SM ( APC ) | MM OM1 OM2 | MM OM3 | MM OM4 | |
|---|

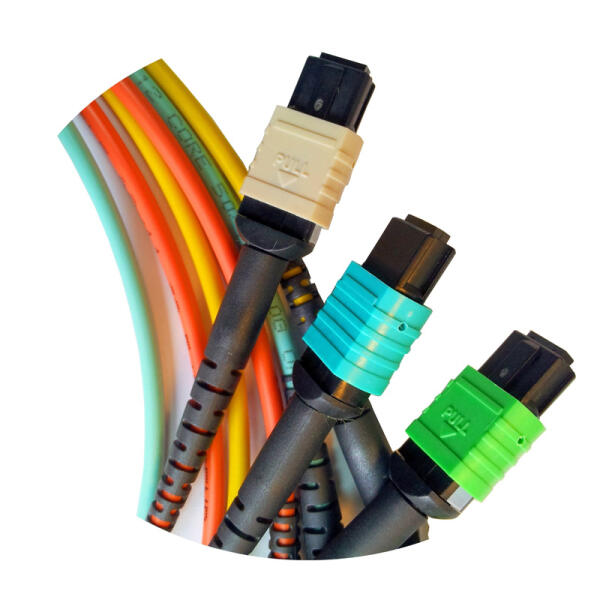

| MPO Connector Color | Green | Beige | Aqua | Aqua or Violet | | Operating Wavelength | 1270~1610nm | 850nm / 1300nm | 850nm / 1300nm | 850nm / 1300nm | | MPO Insertion Standard Loss* | <=0.75dB | <=0.75dB | <=0.75dB | <=0.75dB | | MPO Insertion Low Loss ( Elite )* | <=0.35dB | <=0.35dB | <=0.35dB | <=0.35dB | | Other Connector Insertion Loss ( MAX )* | <=0.30dB | <=0.30dB | <=0.30dB | <=0.30dB | | Return Loss ( MAX )* | <=-60dB | <=-20dB | <=-20dB | <=-20dB | | MPO Fiber Height | 1000~3000nm | 1000~3000nm | 1000~3000nm | 1000~3000nm | | MPO adjacent Fiber height difference | <=200nm | <=200nm | <=200nm | <=200nm | | MPO all Fiber height difference | <=350nm | <=350nm | <=350nm | <=350nm | | MPO X / Y End-face Angel | -0.2 ~ 0.2 um | -0.2 ~ 0.2 um | -0.2 ~ 0.2 um | -0.2 ~ 0.2 um | | Operating Temperature | -40 ~ +70°C | -40 ~ +70°C | -40 ~ +70°C | -40 ~ +70°C |
Note. Measured with 1310nm for SMF and 850nm for MMF. | - Data Center
- High Speed 40G, 100G, 200G, 400G Network
- Optical Access Network
- Broadband / CATV System
| - 8, 12, 16, 24 Fiber counts available
- High Density & Compact Size
- Compliant with IEC61754-7, TIA/EIA 604-5, GR-326, GR-1435t
- LSZH, OFNR, OFNP cable jacket
| |
