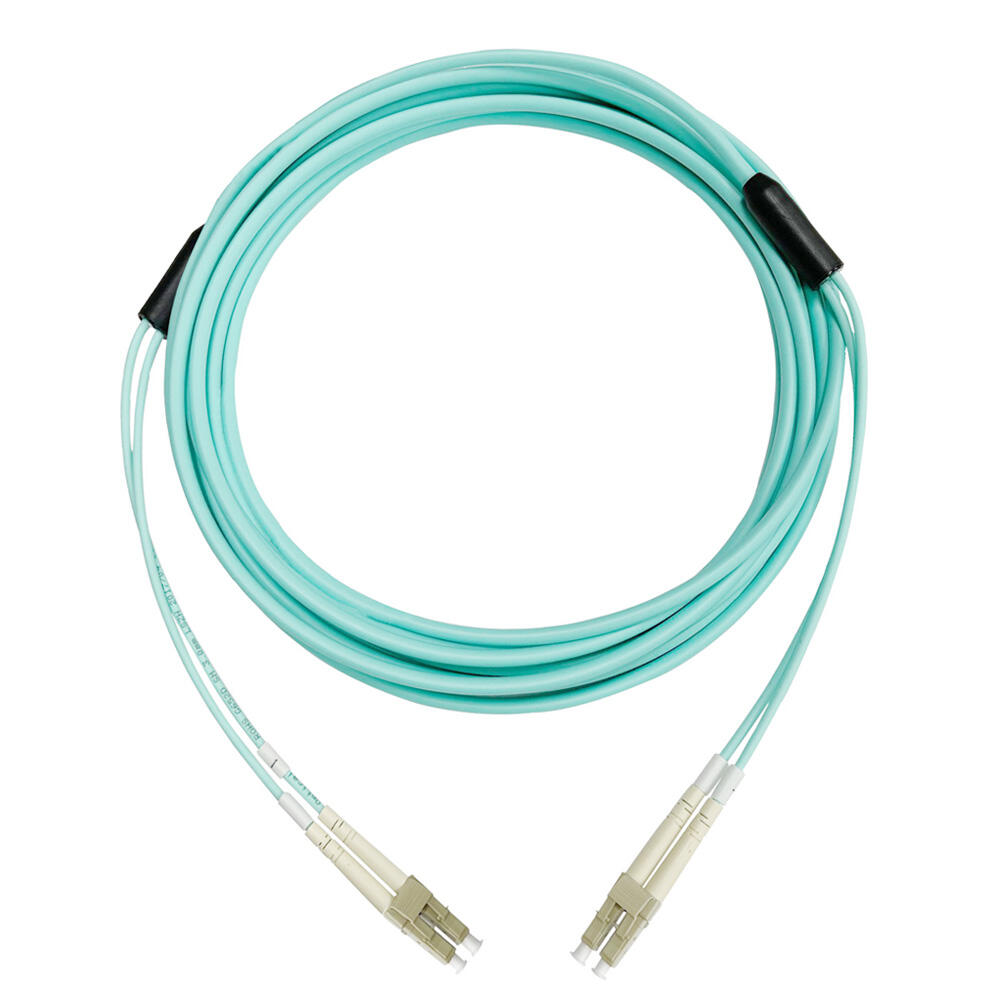

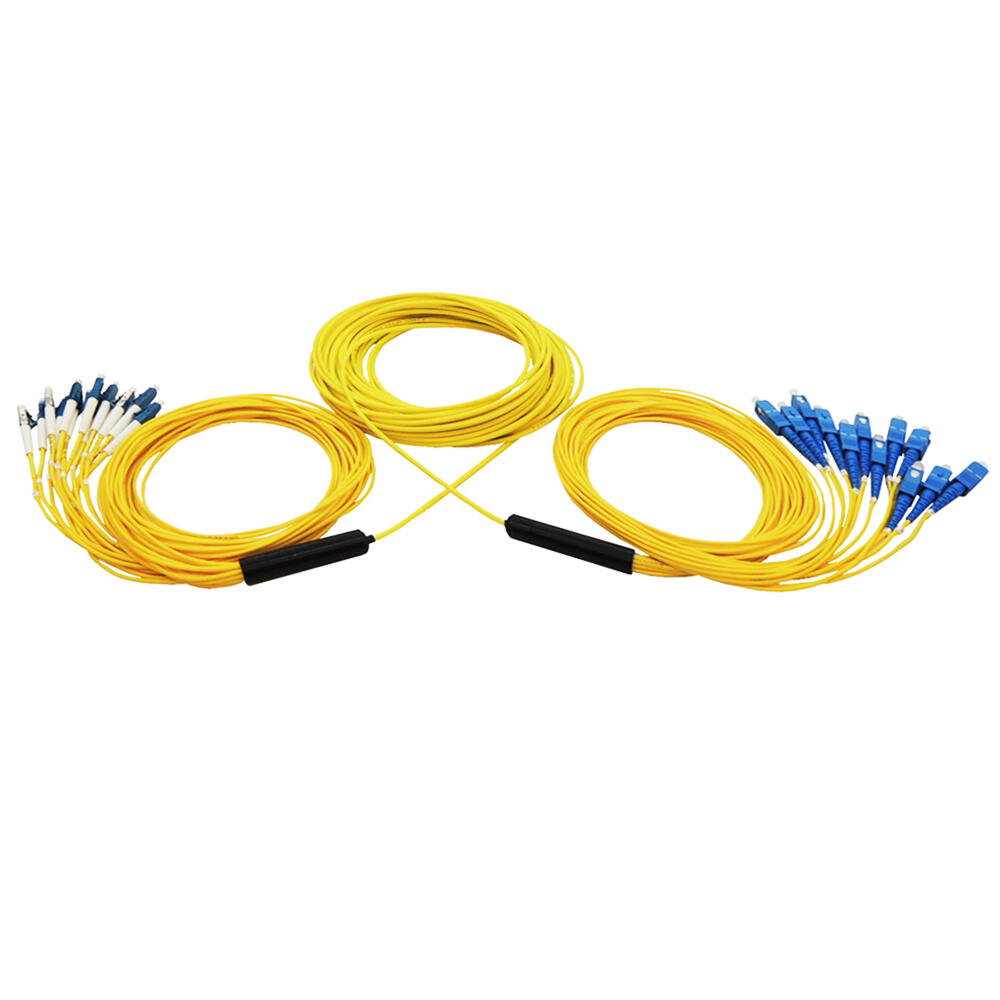

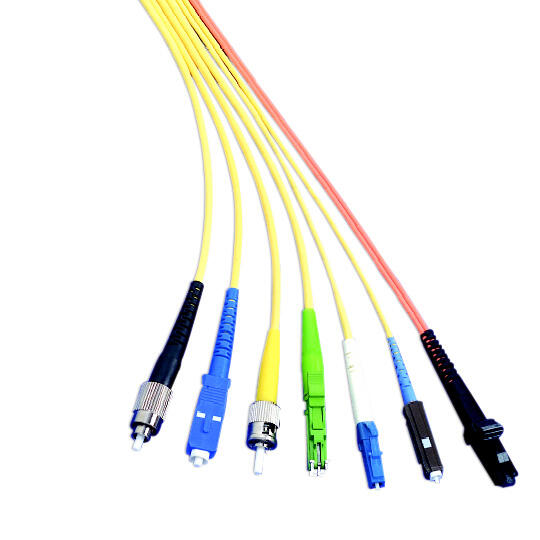

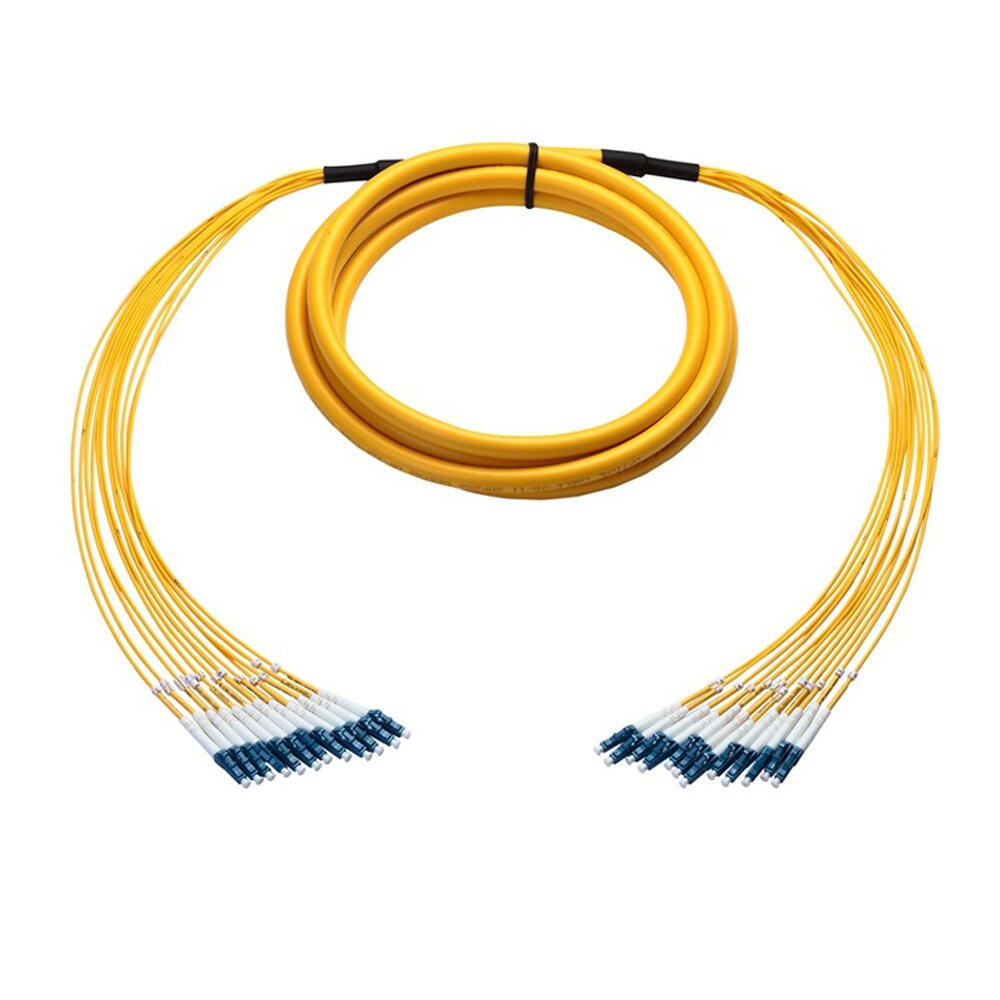

Indoor Patch-cord/Cable

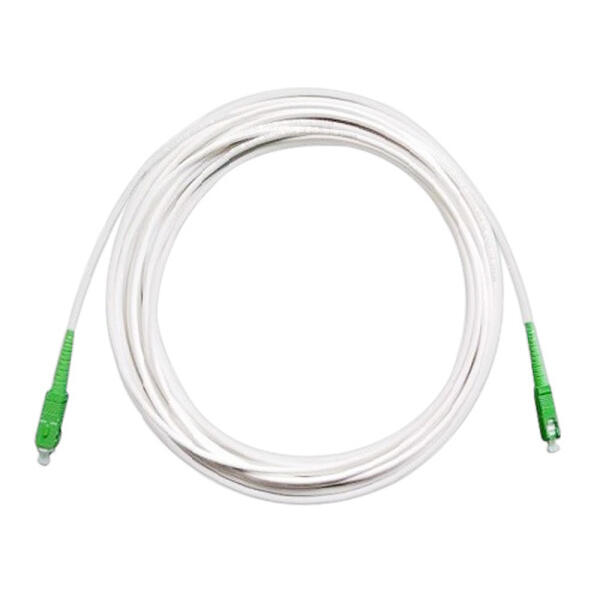

High Strength and Suppleness Patch-cord
High Strength and Suppleness Fiber Optical Indoor Patch-cord
SMF G.657A2 Fiber, 2.9mm LSZH Armored Cable
| Parameters | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|
| Fiber Type | SMF G.657A2 | SMF G.657A2 | SMF G.657A2 | SMF G.657A2 |
| Fiber Attenuation @1310nm | 0.4 | dB/km | ||
| Fiber Attenuation @1550nm | 0.3 | dB/km | ||
| Tight Buffer | 0.6mm x 1 | 0.6mm x 1 | 0.6mm x 1 | 0.6mm x 1 |
| Metal Tube | 200CU, OD1.6±0.1mm | 200CU, OD1.6±0.1mm | 200CU, OD1.6±0.1mm | 200CU, OD1.6±0.1mm |
| Strength Member | Kevlar, 2 x 1100D | Kevlar, 2 x 1100D | Kevlar, 2 x 1100D | Kevlar, 2 x 1100D |
| Metal Braid | 200CU, 3 ( 6 ) x16 | 200CU, 3 ( 6 ) x16 | 200CU, 3 ( 6 ) x16 | 200CU, 3 ( 6 ) x16 |
| Cable Outer Jacket | LSZH, OD2.9 ±0.1 mm | LSZH, OD2.9 ±0.1 mm | LSZH, OD2.9 ±0.1 mm | LSZH, OD2.9 ±0.1 mm |
| Cable Weight | 17.0 | kg/km | ||
| Cable Tensile Long Term | 200 | N | ||
| Cable Tensile Short Term | 400 | N | ||
| Cable Crush Resistance Long Term | 2000 | N/10cm | ||
| Cable Crush Resistance Short Term | 3000 | N/10cm | ||
| Cable Bending Radius │ Static | 10D | mm | ||
| Cable Bending Radius │ Dynamic | 20D | mm | ||
| Permissible Side Pressure | <0.1dB @1200 N/25mm for 1min | <0.1dB @1200 N/25mm for 1min | <0.1dB @1200 N/25mm for 1min | <0.1dB @1200 N/25mm for 1min |
| Permissible Bend Radius | 7.5 | mm | ||
| Connector Insertion Loss | 0.3 | 0.5 | dB | |
| Connector Return Loss │ UPC | -50 | dB | ||
| Connector Return Loss │ APC | -60 | dB | ||
| Connector Mating Durability (500 cycles) | 0.2 | dB | ||
| Temperature Stability | 0.3 | mm | ||
| Operating Temperature °C | -40 | 70 | °C | |
| Storage Temperature °C | -40 | 85 | °C |
- Indoor Cabling
- FTTx and PON networks
- High Strength & Suppleness
- Low Insertion Loss & Return Loss
- Mice Biting prevention
- Permissible Side Pressure <0.1dB @1200 N/25mm for 1min
- Permissible Bending Radius 7.5mm
