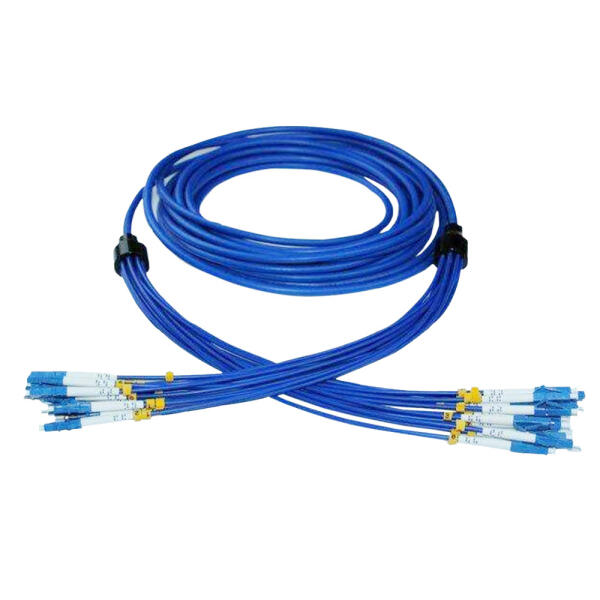

Armored Breakout Cable
Fiber Optical Armored Breakout Patch-cord
| Fiber Type | Single-mode | Multi-mode | |
|---|---|---|---|
| Nominal Fiber OD | 125.3 ~126.5μm | 126 ~ 127.5μm | |
| Connector Type | SC, FC, ST, E2000, LC, MU | SC, FC, ST, E2000, LC, MU | |
| Insertion Loss ( Typical )( dB ) | 0.2 | 0.3 | |
| Insertion Loss ( Max. )( dB ) | 0.3 | 0.5 | |
| Return Loss ( dB ) PC | ≦-40 | - | |
| Return Loss ( dB ) UPC | ≦-50 | - | |
| Return Loss ( dB ) APC | ≦-60 | - | |
| Mating Durability (500 cycles) | ≦ 0.2dB | ≦ 0.2dB | |
| Temperature Stability | ≦ 0.3dB | ≦ 0.3dB | |
| Operating Temperature °C | -40°C ~ 70°C | -40°C ~ 70°C | |
| Storage Temperature °C | -40°C ~ 85°C | -40°C ~ 85°C |
*Measured with 1310nm for SMF and 850nm for MMF
| Item | Single-Mode | Single-Mode | Multi-Mode | Multi-Mode | |
|---|---|---|---|---|---|
| Outer diameter | 6.0mm | 6.0mm | 6.0mm | 6.0mm | |
| Standard color | Blue | Blue | Gray | Gray | |
| Cable weight | 45kg/km approximately | 45kg/km approximately | 45kg/km approximately | 45kg/km approximately | |
| Operating temperature | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | -20°C ~ +70°C | |
| Storage temperature | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | -40°C ~ +80°C | |
| Tensile strength Short term | 800N | 800N | 800N | 800N | |
| Tensile strength Long term | 500N | 500N | 500N | 500N | |
| Compression resistant strength | ≥3000N/100MM | ≥3000N/100MM | ≥3000N/100MM | ≥3000N/100MM | |
| General attenuation | 1310nm | ≤0.35dB/km | 850nm | ≤3.0dB/km | |
| General attenuation | 1550nm | ≤0.25dB/km | 1300nm | ≤1.0dB/km | |
| Minimal Bending radius | ≥30D | ≥30D | ≥30D | ≥30D | |
| Minimal Bending radius | ≥30D | ≥30D | ≥30D | ≥30D | |
| Printing contents | OPTICAL CABLE SM(9/125) 6.0mm 12C XXXXM | OPTICAL CABLE SM(9/125) 6.0mm 12C XXXXM | OPTICAL CABLE SM(9/125) 6.0mm 12C XXXXM | OPTICAL CABLE SM(9/125) 6.0mm 12C XXXXM |
- Indoor underground deployment
- Critical and tough environment
- Test and Measurement Equipment
- Military & Medical application
- FTTH / FTTB
- CATV
- Steel tape armored inside outer jacket
- High tensile strength, pressure resistance and wist resistance
- Resistance of rodent bite
- Flame retardant
- Varieties of optical fiber connectors available
- High Reliability & Stability
