200G QSFP56 AOC

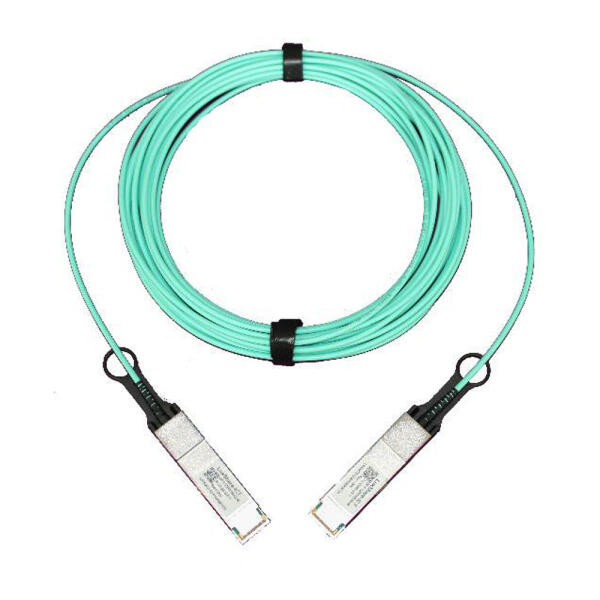

200G QSFP56 Active Optical Cable (AOC)
Hot Pluggable, Fiber Cable, 850nm, Multi-Mode, 1M~100M
| Part Number | Data Rate | Connector | Cable Specification | Wavelength | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FAOC-B0G-Q5Q5-xxx-xx | 200G | QSFP56 to QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G-AOC | |
| FAOC-B0G-Q6Q6-xxx-xx | 200G | QSFP56 to QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G-AOC | |
| FAOC-B0G-Q6Q5-xxx-xx | 200G | QSFP56 to 2x100G QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G to 2x100G QSFP56 AOC | |
- 200GBASE-SR4 Ethernet
- 200Gb/s InfiniBand HDR
- Data Center & Storage
- Datacom Telecom Switch & Router
- Compliant with IEEE 802.3cd 200GBASE-SR4
- Compliant with SFF-8665 for QSFP56 port
- Compliant with IBTA InfiniBand HDR
- 4 independent full-duplex channels
- Aggregate data rate 212.5Gbps
- Hot Pluggable
- 4x50G PAM4 VCSEL / PIN array
- 38-pin electrical edge connector
- CMIS4.0 management interface
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single +3.3V power supply
- Link distance 100m over OM4 fiber and 70m over MM OM3 fiber
- Low Power Consumption <4.5W
- RoHS Compliant
