50G
50G-QSFP28-ER4

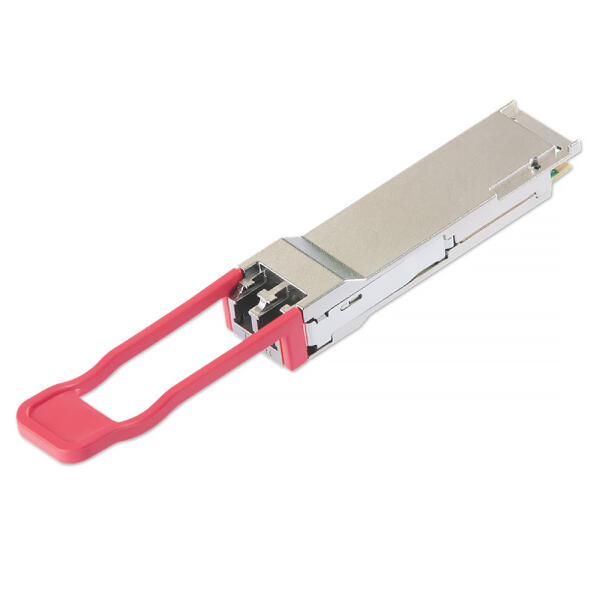

50G QSFP28 ER4 光纖模組
Hot Pluggable, Duplex LC, 1311nm EML, SMF 40KM, C-Temp
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-Q7-C13-40D | 50Gbps | 1311nm EML | Duplex LC | SM 40km (with FEC) | 0~70°C | QSFP28-50G-ER, C-Temp | |
- 50GBASE-ER Ethernet
- Mobile Network
- Telecom & Enterprise Network
- Compliant with IEEE802.3cn 50GBASE-ER
- Compliant with SFF-8665, 8679 QSFP28 MSA
- 26.5625Gbps Electrical Channel compliant with 50GAUI-2 Interface
- 1CH 50G PAM4 Transmitter / Receiver
- Support 53.125Gbps Aggregate Data Rate
- Built in Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- CWDM 1311nm EML transmitter
- APD receiver
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 40km over SM fiber
- Operating Temperature 0~+70°C
- Maximum Power consumption 4.5W
- RoHS compliant
