F520 OTN DWDM System

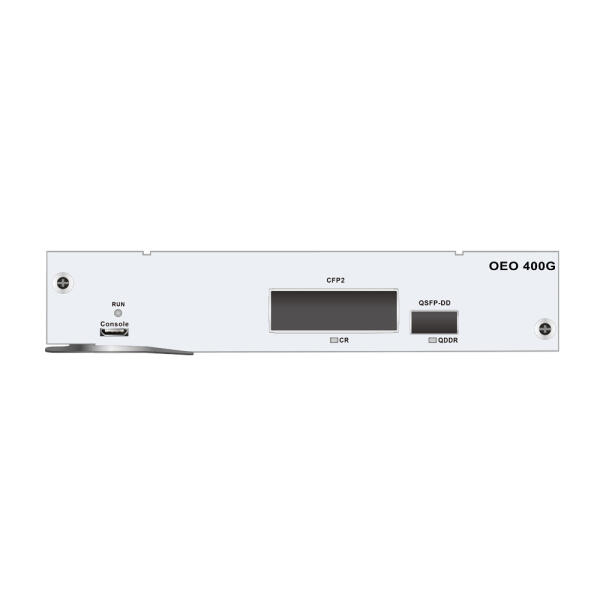

F520 400G OEO (400G Transponder, QSFP56-DD to CFP2)
F520 400G Transponder 1*400G QSFP56-DD to 1*400G CFP2
- Metro DWDM distance extension
- Long-Haul transmission system
- Signal Repeating
- Media Conversion
- Lambda Conversion
- Client side: 1*400G QSFP56-DD
- Line side: 1*400G CFP2
- Support Line-side GFEC (G.709 RS-FEC), EFEC and SDFEC (depends on CFP2-DCO module)
- Dispersion Tolerance up to 40000ps/nm (depends on CFP2-DCO module)
- Support adjustable wavelength with CFP2-DCO module
- Support adjustable output power with CFP2-DCO module
- Support OSNR real-time monitoring with CFP2-DCO module
- Support port Loopback test
- Hot Swap
- Real-Time DDM
- Support ALS (Automatic Laser Shutdown)
- Support all F520 Chassis
