Rack-Mount

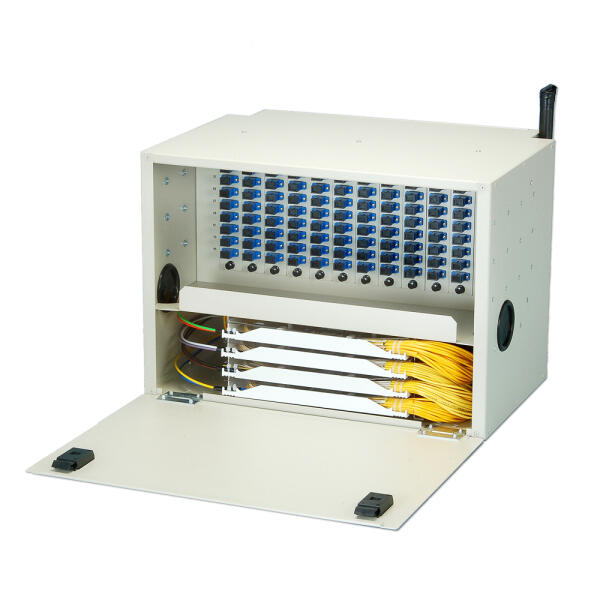

Fiber Distribution Box / Optical Distribution Frame 光纖配線箱
1U 24-Port Rack-Mount, Sliding Rail
1U 24-Port Rack-Mount, Fixed Adaptor Panel and Splice Tray
4U 48-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
6.5U 96-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
7U 120-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
8U 144-Port Rack-Mount, Fixed Adaptor Panel, Sliding Splice Tray
| 詢價單 | 產品料號 | 資料傳輸率 | 尺寸 | 適配器 | 材質 | 拼接托盤 | 產品重量 | 產品重量(含包裝) | 下載 |
|---|---|---|---|---|---|---|---|---|---|
FFDB-RM-24Sx-xxxxxx | 24port | 430mm x 300mm x 45mm (1U) | SC/FC/ST/LC | Aluminum | 150mm x 110mm (12 Cores) x 2pcs | 4.0kg | 4.5kg |  | |
FFDB-R24AE1-xxxxxx | 24port | 430mm x 300mm x 45mm (1U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 1pc | 1.5kg | 2.0kg | | |
FFDB-R48AE1-xxxx | 48port | 430mm x 300mm x 175mm (4U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 2pcs | 3.0kg | 4.2kg | | |
FFDB-R96AE1-xxxx | 96port | 430mm x 300mm x 300mm (6.5U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 ports) x 4pcs | 4.6kg | 6.2kg | | |
FFDB-RM-120Ax-xxxxxx | 120port | 430mm x 300mm x 310mm (7U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 Cores) x 5pcs | 5.0kg | 6.5kg | | |
FFDB-R144AE1-xxxx | 144port | 430mm x 300mm x 360mm (8U) | SC/FC/ST/LC | Aluminum | 230mm x 130mm (24 ports) x 6pcs | 5.0kg | 6.8kg | |
