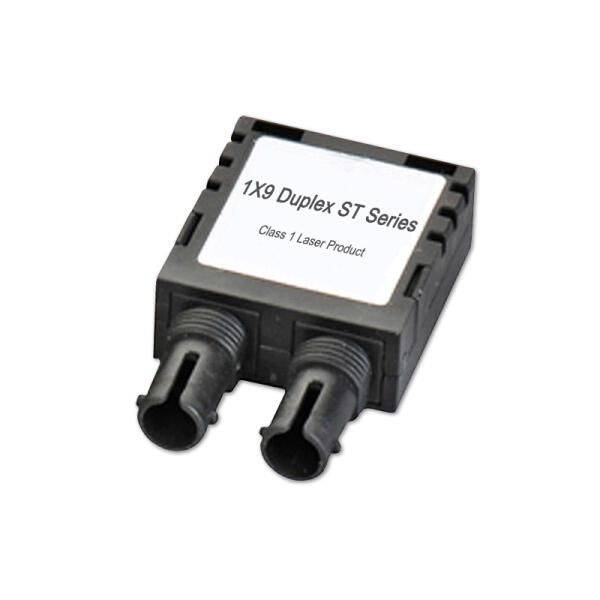

Ultra-Low Data-Rate 1X9 DC~10Mbps
Ultra-Low Data-Rate 1X9 DC~10Mbps 光纖模組
Duplex Plastic ST, 850nm / 1310nm, MMF 2KM~5KM, LVTTL / TTL Signal Detection
ST Connector (plastic)
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| F1X9-05-M85-02B | DC~10M | 850nm VCSEL | Duplex Plastic ST | MM 2km | 0~70°C | 1X9 DC-10M MMF 2km, SD=TTL | |
| F1X9-05-M85-02Bi | DC~10M | 850nm VCSEL | Duplex Plastic ST | MM 2km | -40~85°C | 1X9 DC-10M MMF 2km, SD=TTL, I-Temp | |
| F1X9-05-M13-05B | DC~10M | 1310nm FP | Duplex Plastic ST | MM 5km | 0~70°C | 1X9 DC-10M MMF 5km, SD=TTL | |
| F1X9-05-M13-05Bi | DC~10M | 1310nm FP | Duplex Plastic ST | MM 5km | -40~85°C | 1X9 DC-10M MMF 5km, SD=TTL,I-Temp | |
- Ultra-Low Data-Rate DC~10Mbps
- RS232 / RS422 / RS485
- IEEE C37.94 / IEC 62843
- Fiber Monitor System
- Industrial Control System
- V.35(RS449)/X.21/G.703(E1)
- Industry Standard 1x9 Footprint
- 850nm/1310nm laser transmitter
- Duplex Plastic ST connector
- Single 3.3V or 5V Power Supply
- DC-coupled Differential TTL inputs and outputs
- LVTTL / TTL Signal Detection Output
- Wave Solderable and Aqueous Washable
- Link distance 2km~5km over MM fiber
- RoHS Compliant
