| 詢價單 | 規格 | 應用 | 特點 | 下載 |
| | | Part Number | Data Rate | Connector | Cable | Cable Specification | Length | Remark | Datasheet |
|---|
| FAOC-10G-SPSP-xxx-xx | 10G | SFP+ to SFP+ | Fiber | OM3 | 1M~150M | SFP+ 10G-AOC |  |
| - 10GBASE-SR Ethernet Link
- InfiniBand SDR, DDR, QDR, FDR-10
- Data Center & Storage
- Datacom Telecom Switch & Router
| - Compatible with IEEE802.3ae 10GBASE-SR
- Compliant with SFF-8431 SFP+ MSA
- Support InfiniBand SDR, DDR, QDR & FDR-10
- Up to 11.2Gbps data rate
- Hot Pluggable
- 850nm VCSEL transmitter and PIN receiver
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single 3.3V power supply
- Link distance up to 150m over MM OM3 fiber
- Low power consumption <1.0W
- RoHS Compliant
| - |
| | | Part Number | Data Rate | Connector | Cable | Cable Specification | Length | Remark | Datasheet |
|---|
| FAOC-25G-SPSP-xxx-xx | 25G | SFP28 to SFP28 | Fiber | OM4 | 1M~100M | SFP28-25G-AOC | |
| - 25GBASE-SR Ethernet Link
- InfiniBand EDR, FDR-10
- Data Center & Storage
- Data Center & Storage
- Datacom / Telecom Switch & Router
| - Compatible with IEEE802.3by 25GBASE-SR
- Compliant with SFF-8402 SFP28 MSA
- Support InfiniBand EDR, FDR-10
- Up to 25.78125Gbps data rate
- Hot Pluggable
- 850nm VCSEL transmitter and PIN receiver
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single 3.3V power supply
- Link distance 100m over MM OM4 fiber and 70m over MM OM3 fiber
- Low power consumption <1.0W
- RoHS Compliant
| - |
| | | Part Number | Data Rate | Connector | Cable Specification | Wavelength | Length | Remark | Datasheet |
|---|

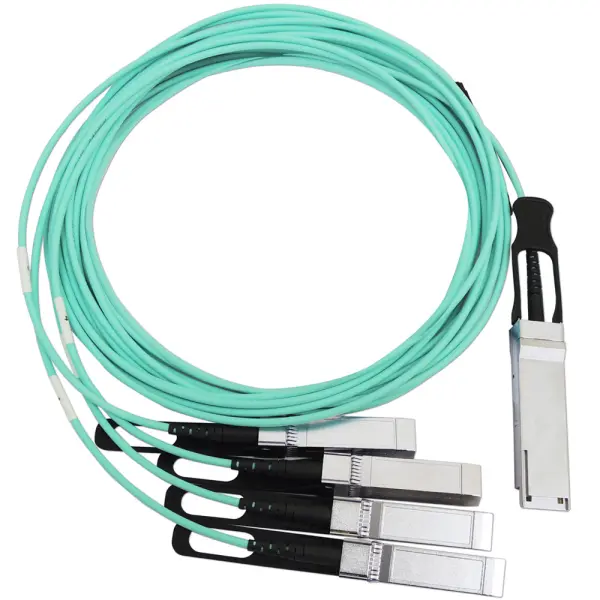

| FAOC-40G-QPQP-xxx-xx | 40G | QSFP+ to QSFP+ | OM3 | 850nm | 1M~150M | QSFP+ 40G-AOC | | | FAOC-40G-QPSP-xxx-xx | 40G | QSFP+ to 4*SFP+ | OM3 | 850nm | 1M~150M | QSFP+ 4SFP-AOC | | | FAOC-40G-QPLP-xxx-xx | 40G | QSFP+ to 8*LC | OM3 | 850nm | 3M~100M | QSFP+ 8LC-AOC | | | FAOC-40G-QPDP-xxx-xx | 40G | QSFP+ to 4xDLC | OM3 | 850nm | 1M~100M | QSFP+ to 4xDLC+ AOC | |
| - 40GBASE-SR4 Ethernet Link
- InfiniBand QDR, FDR10
- Data Center & Storage
- Datacom / Telecom Switch & Router
| - Compatible with IEEE802.3ba 40GBASE-SR4
- Compliant with SFF-8436 QSFP+ MSA
- Support InfiniBand QDR, FDR10
- 4 independent full-duplex channels
- Up to 10.3125Gbps data rate per channel
- Hot Pluggable
850nm VCSEL array transmitter- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single +3.3V power supply
- Link distance up to 150m over MM OM3 fiber
- Low power consumption <1.5W
- RoHS Compliant
| - |
| | | 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|
| FAOC-A0G-QPQP-xxx-xx | 100Gbps | QSFP28 to QSFP28 | OM4 | 850nm | 1M~100M | QSFP28-100G-AOC | | | FAOC-A0G-QPSP-xxx-xx | 100Gbps | QSFP28 to 4SFP28 | OM4 | 850nm | 1M~100M | QSFP28-4SFP-AOC | |
| - 100GBASE-SR4 Ethernet Link
- InfiniBand QDR, EDR
- Data Center & Storage
- Datacom / Telecom Switch & Router
| - Compatible with IEEE802.3bm 100GBASE-SR4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant to IEEE 802.3bm CAUI-4 Interface
- Support InfiniBand QDR, EDR
- 4 independent full-duplex channels
- Up to 25.78125Gbps data rate per channel
- Hot Pluggable
- 850nm VCSEL array transmitter
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 100m over MM OM4 fiber and 70m over MM OM3 fiber
- Low power consumption <2.5W
- RoHS Compliant
| - |
| | | Part Number | Data Rate | Connector | Cable Specification | Wavelength | Length | Remark | Datasheet |
|---|
| FAOC-B0G-Q5Q5-xxx-xx | 200G | QSFP56 to QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G-AOC | | | FAOC-B0G-Q6Q6-xxx-xx | 200G | QSFP56 to QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G-AOC | | | FAOC-B0G-Q6Q5-xxx-xx | 200G | QSFP56 to 2x100G QSFP56 | OM4 | 850nm | 1M~100M | QSFP56-200G to 2x100G QSFP56 AOC | |
| - 200GBASE-SR4 Ethernet
- 200Gb/s InfiniBand HDR
- Data Center & Storage
- Datacom Telecom Switch & Router
| - Compliant with IEEE 802.3cd 200GBASE-SR4
- Compliant with SFF-8665 for QSFP56 port
- Compliant with IBTA InfiniBand HDR
- 4 independent full-duplex channels
- Aggregate data rate 212.5Gbps
- Hot Pluggable
- 4x50G PAM4 VCSEL / PIN array
- 38-pin electrical edge connector
- CMIS4.0 management interface
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single +3.3V power supply
- Link distance 100m over OM4 fiber and 70m over MM OM3 fiber
- Low Power Consumption <4.5W
- RoHS Compliant
| - |
