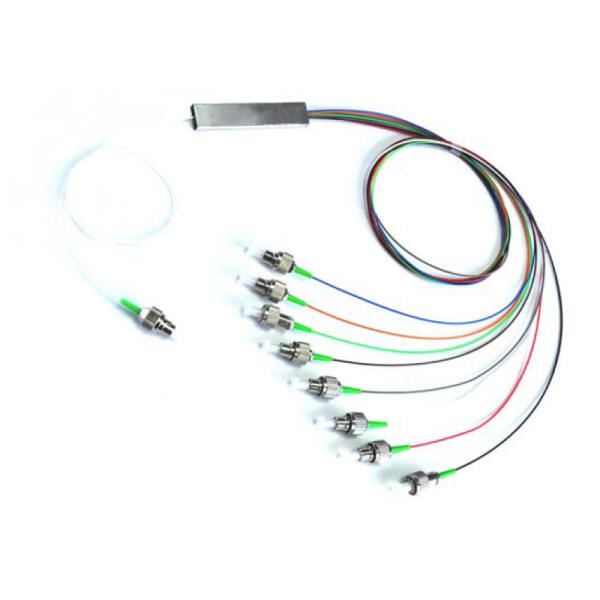

Splitter ( Coupler )

詢價單

規格

產品特點

下載

FBT Technology MM OM3 850nm Coupler

Parameter	Premium	Standard
Operating Wavelength	850nm	850nm
Port Configuration	1x2 or 2x2	1x2 or 2x2
Typical Excess Loss ( dB )	0.7	1.0
Max. Insertion Loss ( Without Connector )( dB )	4.6	5.0
Uniformity ( 50/50 ) (dB )	≦0.7	≦1.0
Directivity ( dB )	>=55	>=55
Thermal Stability ( dB )	≦0.25	≦0.25
Operating Temperature ( with Hytrel Cable )	-40°C to +85°C	-40°C to +85°C
Storage Temperature ( with Hytrel Cable )	-40°C to +85°C	-40°C to +85°C
Package Dimensions ( mm )	A ( 250mm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)	A ( 250mm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)

Note: All the data above does not include connectors.

FBT Technology SM 1310 / 1550nm Dual Window Coupler

Parameter	Premium	Standard
Operating Wavelength	1310 / 1550±40nm	1310 / 1550±40nm
Port Configuration	1x2 or 2x2	1x2 or 2x2
Typical Excess Loss ( dB )	0.1	0.15
Max. Insertion Loss ( Without Connector )( dB )	3.6	3.8
Uniformity ( 50/50 ) (dB )	≦0.7	≦1.0
Polarization Dependent Loss* ( dB )	≦0.10	≦0.15
Directivity ( dB )	>=50	>=50
Thermal Stability ( dB )	≦0.25	≦0.25
Operating Temperature ( with Hytrel Cable )	-40°C to +85°C	-40°C to +85°C
Storage Temperature ( with Hytrel Cable )	-40°C to +85°C	-40°C to +85°C
Package Dimensions ( mm )	A ( 250µm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)	A ( 250µm ): 3.0(OD) x 54(L) B ( 0.9mm ): 3.0(OD) x 60(L) C (3.0 or 0.9mm ): 98(L) x 14(W) x 8.5(H)

Note: All the data above does not include connectors.

1xN Splitter

Parameter	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm
Fiber Type	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified
Channel Passband (@-0.5dB bandwidth) Min.(nm)	3.8 /4.0	7.2/7.4	10.3/10.5	13.5/13.7	16.5/16.9	20.5/21.0	23.8/24.2
Max. Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0	2.5
Max. Polarization Dependent Loss (dB)	0.1	0.1	0.1	0.2	0.25	0.3	0.4
Return Loss (dB)	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55
Directivity (dB)	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55
Temperature Stability (-40～85°C)(dB)	≦0.3	≦0.3	≦0.3	≦0.5	≦0.5	≦0.5	≦0.5
Operating Temperature	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C
Storage Temperature	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C

2xN Splitter

Parameter	2×2	2×4	2×8	2×16	2×32	2×64	2×128
Operating Wavelength	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm	1260～1650nm
Fiber Type	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified	Default G657A1 or customer specified
Channel Passband (@-0.5dB bandwidth) Min.(nm)	3.9/4.2	7.3/7.6	10.5/11.0	14.4/14.6	17.4/17.9	21.0/21.5	24.5/25.0
Max. Loss Uniformity (dB)	0.6	1.0	1.2	1.5	1.8	2.2	2.5
Max. Polarization Dependent Loss (dB)	0.2	0.2	0.2	0.3	0.3	0.3	0.4
Return Loss (dB)	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55
Directivity (dB)	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55	≦-55
Temperature Stability (-40～85°C)(dB)	≦0.4	≦0.4	≦0.4	≦0.5	≦0.5	≦0.5	≦0.5
Operating Temperature	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C
Storage Temperature	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C	-40～85°C

* S/P : ‘S’ means ‘Standard Grade’, and, ‘P’ means Premium Grade

* IL values are measured @1310&1550nm

* IL, PDL, Uniformity values are for “Without connectors”
