AOC (Active Optical Cable)

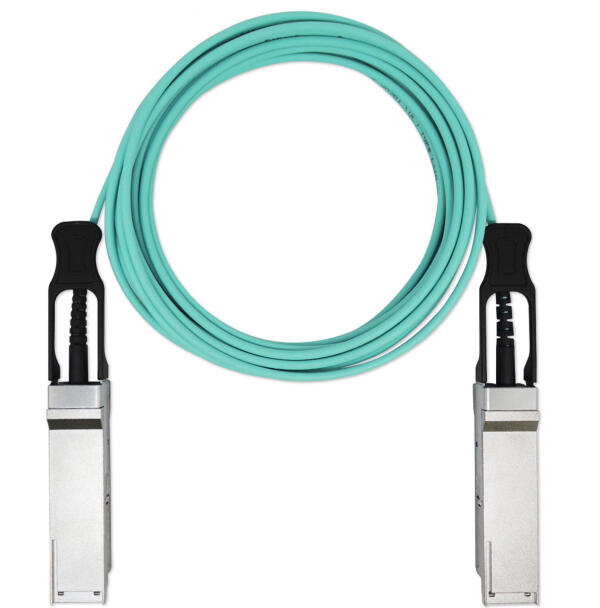

40G QSFP+ AOC

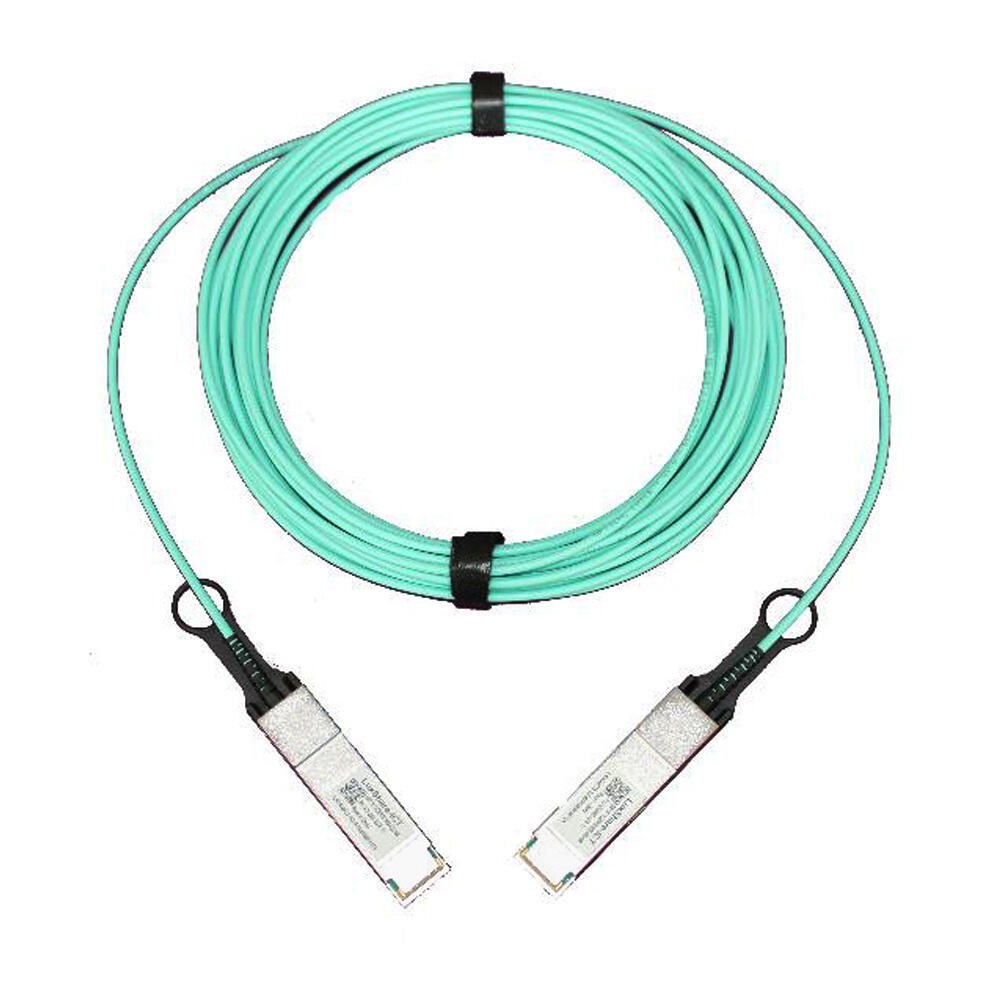

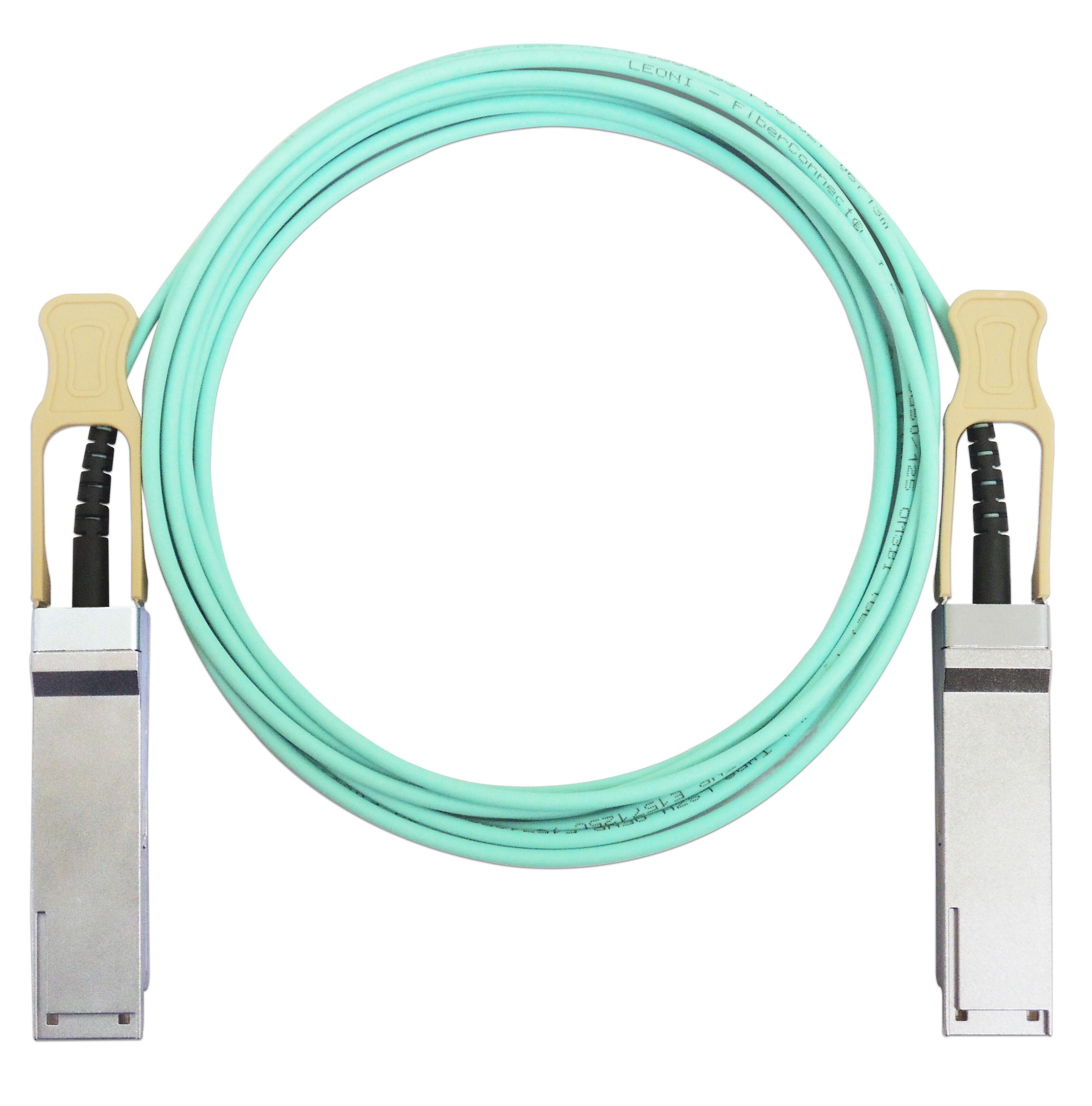

40G QSFP+ Active Optical Cable (AOC)
Hot Pluggable, Fiber Cable, 850nm, Multi-Mode, 1M~150M
| Part Number | Data Rate | Connector | Cable Specification | Wavelength | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FAOC-40G-QPQP-xxx-xx | 40G | QSFP+ to QSFP+ | OM3 | 850nm | 1M~150M | QSFP+ 40G-AOC | |
| FAOC-40G-QPSP-xxx-xx | 40G | QSFP+ to 4*SFP+ | OM3 | 850nm | 1M~150M | QSFP+ 4SFP-AOC | |
| FAOC-40G-QPLP-xxx-xx | 40G | QSFP+ to 8*LC | OM3 | 850nm | 3M~100M | QSFP+ 8LC-AOC | |
| FAOC-40G-QPDP-xxx-xx | 40G | QSFP+ to 4xDLC | OM3 | 850nm | 1M~100M | QSFP+ to 4xDLC+ AOC | |
- 40GBASE-SR4 Ethernet Link
- InfiniBand QDR, FDR10
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compatible with IEEE802.3ba 40GBASE-SR4
- Compliant with SFF-8436 QSFP+ MSA
- Support InfiniBand QDR, FDR10
- 4 independent full-duplex channels
- Up to 10.3125Gbps data rate per channel
- Hot Pluggable 850nm VCSEL array transmitter
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single +3.3V power supply
- Link distance up to 150m over MM OM3 fiber
- Low power consumption <1.5W
- RoHS Compliant
