AOC (Active Optical Cable)

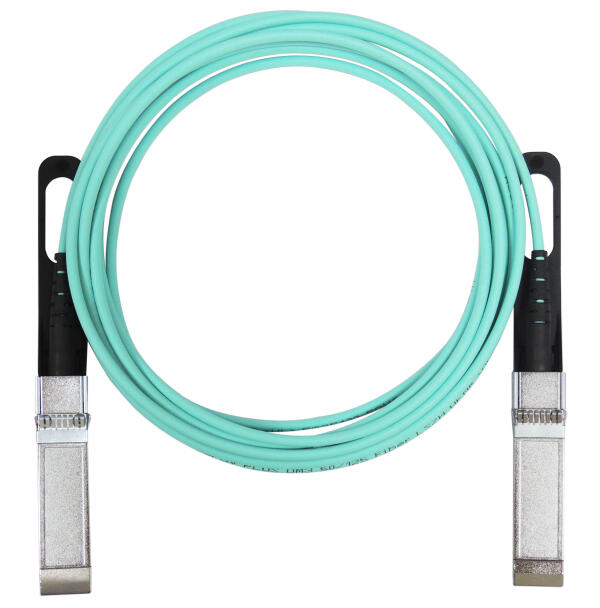

25G SFP28 AOC
25G SFP28 Active Optical Cable (AOC)
Hot Pluggable, Fiber Cable, 850nm, Multi-Mode, 1M~100M
| Part Number | Data Rate | Connector | Cable | Cable Specification | Length | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FAOC-25G-SPSP-xxx-xx | 25G | SFP28 to SFP28 | Fiber | OM4 | 1M~100M | SFP28-25G-AOC | |
- 25GBASE-SR Ethernet Link
- InfiniBand EDR, FDR-10
- Data Center & Storage
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compatible with IEEE802.3by 25GBASE-SR
- Compliant with SFF-8402 SFP28 MSA
- Support InfiniBand EDR, FDR-10
- Up to 25.78125Gbps data rate
- Hot Pluggable
- 850nm VCSEL transmitter and PIN receiver
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single 3.3V power supply
- Link distance 100m over MM OM4 fiber and 70m over MM OM3 fiber
- Low power consumption <1.0W
- RoHS Compliant
