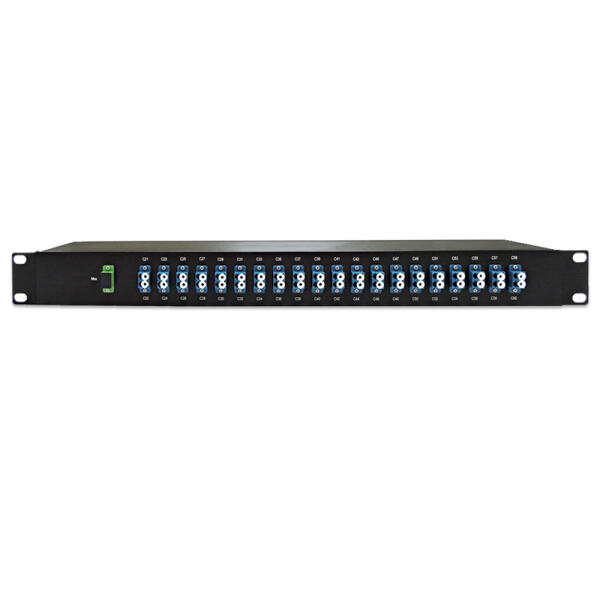

| | | Parameter | Min. | Typ. | Max. | Unit. | Note. | |
|---|
| Number of Channels | 16, 20, 24, 32, 40, 44, 48 | 16, 20, 24, 32, 40, 44, 48 | 16, 20, 24, 32, 40, 44, 48 | | | | | Number Channel Spacing | 100 | 100 | 100 | GHz | | | | Center Wavelength | C-band | C-band | C-band | nm | | | | Clear Channel Pass Band | ±0.1 | ±0.1 | ±0.1 | nm | | | | Wavelength Stability | ±0.05 | ±0.05 | ±0.05 | Nm | | | | -1dB Channel Bandwidth | 0.24 | | | nm | | | | -3dB Channel Bandwidth | -0.43 | | | nm | | | | Optical Insertion Loss at ITU grid | | 4.5 | 6.0 | dB | 1 | | | Adjacent Channel Isolation | 25 | | | dB | | | | Non-Adjacent Channel Isolation | 29 | | | dB | | | | Total Channel Isolation | 22 | | | dB | | | | Insertion Loss Uniformity | | 0.8 | 0.5 | dB | 1 | | | Insertion Loss Ripple | | | 1.2 | dB | 1 | | | Optical Return Loss | 40 | | | dB | | | | PDL / Polarization Dependent Loss | | 0.3 | 0.5 | dB | 2 | | | Polarization Mode Dispersion | | | 0.5 | Ps | | | | Maximum Optical Power | | | 23 | dBm | | | | Monitoring Range | -35 | | +23 | dBm | | |
Note 1. The Insertion Loss values not including Connector Loss. Note 2. 16CH & 18CH are with Band Splitter. | - High Stability and Reliability
- Low Insertion Loss
- Low PDL
- High Channel Isolation
- No electrical power required
- No temperature control required
| |
| | | Parameter | Min. | Typ. | Max. | Unit. | Note. | |
|---|
| Center Wavelength Range | C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid | C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid | C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid | C61(1528.77nm) ~ C15(1565.50nm) per ITU-Grid | | | | Channel Spacing | 100GHz ( 0.8nm ) | 100GHz ( 0.8nm ) | 100GHz ( 0.8nm ) | 100GHz ( 0.8nm ) | | | | Fiber Type | SMF-28e or equivalent Single Mode Fiber | SMF-28e or equivalent Single Mode Fiber | SMF-28e or equivalent Single Mode Fiber | SMF-28e or equivalent Single Mode Fiber | | | | Center Wavelength Accuracy | ±0.05 | ±0.05 | ±0.05 | nm | | | | Channel Passband (@-0.5dB) (nm) | 0.22 | 0.22 | 0.22 | nm | | | | Passband Ripple (dB) | | | 0.5; | dB | | | | Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX ) | 4CH | 8CH | 16CH | | 1 | | | Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX ) | <1.8 | <3.0 | <4.0 | dB | 1 | | | Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX ) | 24CH | 32CH | 40CH | | 1 | | | Optical Insertion Loss at ITU grid ( for MUX or DEMUX only, not for Pair Loss of MUX+DEMUX ) | <4.8 | <5.6 | <6.2 | dB | 1 | | | Adjacent Channel Isolation | 30 | | | dB | | | | Non-Adjacent Channel Isolation | 40 | | | dB | | | | PDL / Polarization Dependent Loss | | | 0.2 | dB | 2 | | | PMD / Polarization Mode Dispersion | | | 0.1 | ps | | | | Optical Return Loss | 40 | | | dB | | | | PDirectivity | 50 | | | dB | | | | Maximum Optical Power | | | 0.5 | Ps | | | | Maximum Optical Power | | | 300 | mW | | | | 1U 19” Rack-Mount Dimension | -432(W) x 44(H) x 200(D) | -432(W) x 44(H) x 200(D) | -432(W) x 44(H) x 200(D) | mm | 3 | |
Note 1. . IL represents the worst case over a ±0.08nm window around the ITU wavelength without Connector Loss. Note 2. PDL was measured on average polarization over a ±0.08nm window around the ITU wavelength. Note 3. The Width Dimension 432mm is for the main package body only. | - High Stability and Reliability
- Low Insertion Loss
- Low PDL
- High Channel Isolation
- No electrical power required
- No temperature control required
| - |
