PON SFP
1.25G EPON SFP

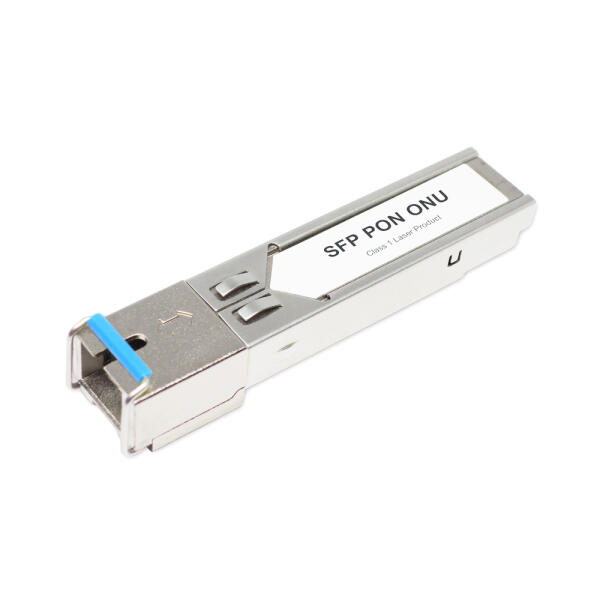

1.25G EPON ONU/OLT SFP Transceiver
Hot Pluggable, BiDi SC, 1310nm / 1490nm, Single Mode, 20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-C2-PE3-201 | 1.25G | Tx1310nm / Rx1490nm | BiDi SC | PON 20km | 0~+70°C | SFP EPON ONU PX20+ | |
| FSFP-C2-PE3-201i | 1.25G | Tx1310nm / Rx1490nm | BiDi SC | PON 20km | -40~+85°C | SFP EPON ONU PX20+, I-Temp | |
| FSFP-C2-PE4-201 | 1.25G | Tx1490nm / Rx1310nm | BiDi SC | PON 20km | 0~+70°C | SFP EPON OLT PX20+ | |
| FSFP-C2-PE4-201i | 1.25G | Tx1490nm / Rx1310nm | BiDi SC | PON 20km | -40~+85°C | SFP EPON OLT PX20+, I-Temp | |
| FSFP-C2-PE4-202 | 1.25G | Tx1490nm / Rx1310nm | BiDi SC | PON 20km | 0~+70°C | SFP EPON OLT PX20++ | |
| FSFP-C2-PE4-203 | 1.25G | Tx1490nm / Rx1310nm | BiDi SC | PON 20km | 0~+70°C | SFP EPON OLT PX20+++ 7dBm | |
- GEPON ONU IEEE802.3-ah 1000BASE-PX20+
- FTTx Application
- Compliant with SFP MSA
- Compliant with SFF8472 diagnostic monitoring interface
- 1310nm/1490nm laser transmitter
- 1.25 Gbps continuous mode transmission
- 1.25 Gbps Burst mode receiver
- Simplex SC/UPC connector
- Single +3.3V power supply
- Link distance 20km over SM fiber
- RoHS Compliant
