1.25G SFP
1.25G SFP-BIDI

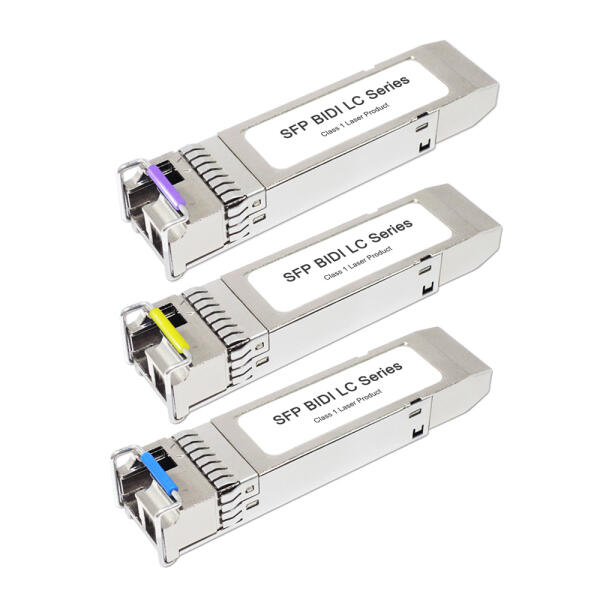

1.25G SFP 1000BX-U/D 光纖模組
Hot Pluggable, BiDi LC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 550M~140KM
BiDi LC Connector
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-C8-M35-X5D | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | MM 550m | 0~70°C | SFP-1000BXM-U3 | |
| FSFP-C8-M35-X5Di | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | MM 550m | -40~85°C | SFP-1000BXM-U3, I-Temp | |
| FSFP-C8-M53-X5D | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | MM 550m | 0~70°C | SFP-1000BXM-D5 | |
| FSFP-C8-M53-X5Di | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | MM 550m | -40~85°C | SFP-1000BXM-D5, I-Temp | |
| FSFP-C8-S35-02D | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 2km | 0~70°C | SFP-1000BX2-U3 | |
| FSFP-C8-S35-02Di | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 2km | -40~85°C | SFP-1000BX2-U3, I-Temp | |
| FSFP-C8-S53-02D | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 2km | 0~70°C | SFP-1000BX2-D5 | |
| FSFP-C8-S53-02Di | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 2km | -40~85°C | SFP-1000BX2-D5, I-Temp | |
| FSFP-C8-S34-10D | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 10km | 0~70°C | SFP-1000BX10-U3 | |
| FSFP-C8-S34-10Di | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 10km | -40~85°C | SFP-1000BX10-U3, I-Temp | |
| FSFP-C8-S43-10D | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 10km | 0~70°C | SFP-1000BX10-D4 | |
| FSFP-C8-S43-10Di | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 10km | -40~85°C | SFP-1000BX10-D4, I-Temp | |
| FSFP-C8-S34-20D | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 20km | 0~70°C | SFP-1000BX20-U3 | |
| FSFP-C8-S34-20Di | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 20km | -40~85°C | SFP-1000BX20-U3, I-Temp | |
| FSFP-C8-S43-20D | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-1000BX20-D4 | |
| FSFP-C8-S43-20Di | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-1000BX20-D4, I-Temp | |
| FSFP-C8-S35-20D | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | 0~70°C | SFP-1000BX20-U3 | |
| FSFP-C8-S35-20Di | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | -40~85°C | SFP-1000BX20-U3, I-Temp | |
| FSFP-C8-S53-20D | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-1000BX20-D5 | |
| FSFP-C8-S53-20Di | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-1000BX20-D5, I-Temp | |
| FSFP-C8-S34-40D | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 40km | 0~70°C | SFP-1000BX40-U3 | |
| FSFP-C8-S34-40Di | 1.25G | Tx1310nm / Rx1490nm | BiDi LC | SM 40km | -40~85°C | SFP-1000BX40-U3, I-Temp | |
| FSFP-C8-S43-40D | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 40km | 0~70°C | SFP-1000BX40-D4 | |
| FSFP-C8-S43-40Di | 1.25G | Tx1490nm / Rx1310nm | BiDi LC | SM 40km | -40~85°C | SFP-1000BX40-D4, I-Temp | |
| FSFP-C8-S35-40D | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | 0~70°C | SFP-1000BX40-U3 | |
| FSFP-C8-S35-40Di | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | -40~85°C | SFP-1000BX40-U3, I-Temp | |
| FSFP-C8-S53-40D | 1.25Gs | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | 0~70°C | SFP-1000BX40-D5 | |
| FSFP-C8-S53-40Di | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | -40~85°C | SFP-1000BX40-D5, I-Temp | |
| FSFP-C8-S35-60D | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | 0~70°C | SFP-1000BX60-U3 | |
| FSFP-C8-S35-60Di | 1.25G | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | -40~85°C | SFP-1000BX60-U3, I-Temp | |
| FSFP-C8-S53-60D | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | 0~70°C | SFP-1000BX60-D5 | |
| FSFP-C8-S53-60Di | 1.25G | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | -40~85°C | SFP-1000BX60-D5, I-Temp | |
| FSFP-C8-S45-80D | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | 0~70°C | SFP-1000BX80-U4 | |
| FSFP-C8-S45-80Di | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | -40~85°C | SFP-1000BX80-U4, I-Temp | |
| FSFP-C8-S54-80D | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | 0~70°C | SFP-1000BX80-D5 | |
| FSFP-C8-S54-80Di | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | -40~85°C | SFP-1000BX80-D5, I-Temp | |
| FSFP-C8-S45-A0D | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 100km | 0~70°C | SFP-1000BX100-U4 | |
| FSFP-C8-S45-A0Di | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 100km | -40~85°C | SFP-1000BX100-U4, I-Temp | |
| FSFP-C8-S54-A0D | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 100km | 0~70°C | SFP-1000BX100-D5 | |
| FSFP-C8-S54-A0Di | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 100km | -40~85°C | SFP-1000BX100-D5, I-Temp | |
| FSFP-C8-S45-A2D | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | 0~70°C | SFP-1000BX120-U4 | |
| FSFP-C8-S45-A2Di | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | -40~85°C | SFP-1000BX120-U4, I-Temp | |
| FSFP-C8-S54-A2D | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | 0~70°C | SFP-1000BX120-D5 | |
| FSFP-C8-S54-A2Di | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | -40~85°C | SFP-1000BX120-D5, I-Temp | |
| FSFP-C8-S45-A4D | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 140km | 0~70°C | SFP-1000BX140-U4 | |
| FSFP-C8-S45-A4Di | 1.25G | Tx1490nm / Rx1550nm | BiDi LC | SM 140km | -40~85°C | SFP-1000BX140-U4, I-Temp | |
| FSFP-C8-S54-A4D | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 140km | 0~70°C | SFP-1000BX140-D5 | |
| FSFP-C8-S54-A4Di | 1.25G | Tx1550nm / Rx1490nm | BiDi LC | SM 140km | -40~85°C | SFP-1000BX140-D5, I-Temp | |
| FSFP-C8-C51-A4D | 1.25G | Tx1510nm / Rx1590nm | BiDi LC | SM 140km | 0~70°C | SFP-1000BX140-U51 | |
| FSFP-C8-C59-A4D | 1.25G | Tx1590nm / Rx1510nm | BiDi LC | SM 140km | 0~70°C | SFP-1000BX140-D59 | |
BiDi SC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-C2-S35-20D | 1.25G | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | 0~70°C | SFP-1000BX20-U3-SC | |
| FSFP-C2-S35-20Di | 1.25G | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | -40~85°C | SFP-1000BX20-U3-SC, I-Temp | |
| FSFP-C2-S53-20D | 1.25G | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | 0~70°C | SFP-1000BX20-D5-SC | |
| FSFP-C2-S53-20Di | 1.25G | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | -40~85°C | SFP-1000BX20-D5-SC, I-Temp | |
| FSFP-C2-S35-40D | 1.25G | Tx1310nm / Rx1550nm | BiDi SC | SM 40km | 0~70°C | SFP-1000BX40-U3-SC | |
| FSFP-C2-S53-40D | 1.25G | Tx1550nm / Rx1310nm | BiDi SC | SM 40km | 0~70°C | SFP-1000BX40-D5-SC | |
| FSFP-C2-S35-60D | 1.25G | Tx1310nm / Rx1550nm | BiDi SC | SM 60km | 0~70°C | SFP-1000BX60-U3-SC | |
| FSFP-C2-S53-60D | 1.25G | Tx1550nm / Rx1310nm | BiDi SC | SM 60km | 0~70°C | SFP-1000BX60-D5-SC | |
| FSFP-C2-S45-80D | 1.25G | Tx1490nm / Rx1550nm | BiDi SC | SM 80km | 0~70°C | SFP-1000BX80-U4-SC | |
| FSFP-C2-S54-80D | 1.25G | Tx1550nm / Rx1490nm | BiDi SC | SM 80km | 0~70°C | SFP-1000BX80-D5-SC | |
| FSFP-C2-S45-A2D | 1.25G | Tx1490nm / Rx1550nm | BiDi SC | SM 120km | 0~70°C | SFP-1000BX120-U4-SC | |
| FSFP-C2-S54-A2D | 1.25G | Tx1550nm / Rx1490nm | BiDi SC | SM 120km | 0~70°C | SFP-1000BX120-D5-SC | |
- Gigabit Ethernet 1000BASE-BX10 @1.25G
- Fiber Channel 1GFC @1.0625G
- Compliant with IEEE802.3ah 1000BASE-BX
- Compliant with Fiber Channel 100-SM-LC-L
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- 1310nm/1490nm/1510nm/1550nm/1590nm laser transmitter
- BiDi LC/SC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 500m~140km over MM/SM fiber
- RoHS Compliant
