1.25G SFP
1.25G SFP-DWDM

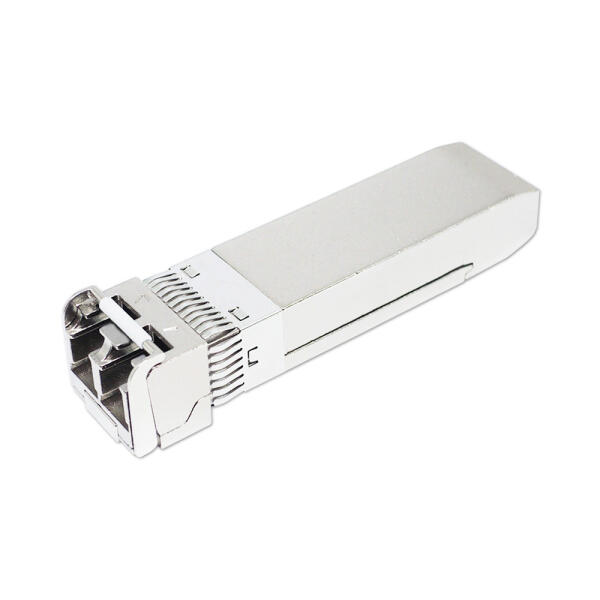

1.25G Gigabit Ethernet SFP DWDM 光纖模組
Hot Pluggable, Duplex LC, DWDM DFB, Single Mode, 80KM~160KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-C7-Dxx-80D | 1.25G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | 0~70°C | SFP-1000DWDMxx-80km | |
| FSFP-C7-Dxx-80Di | 1.25G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 80km | -40~85°C | SFP-1000DWDMxx-80km, I-Temp | |
| FSFP-C7-Dxx-A2D | 1.25G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 120km | 0~70°C | SFP-1000DWDMxx-120km | |
| FSFP-C7-Dxx-A2Di | 1.25G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 120km | -40~85°C | SFP-1000DWDMxx-120km, I-Temp | |
| FSFP-C7-Dxx-A6D-U38 | 1.25G | DWDM 1563.86nm~1528.77nm | Duplex LC | SM 160km | 0~70°C | SFP-1000DWDMxx-160km | |
- Gigabit Ethernet @1.25G
- Fiber Channel 1GFC @1.0625G
- DWDM Networks
- Compliant with IEEE802.3z Gigabit Ethernet
- Compatible with Fiber Channel 100-SM-LL-V
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- Cooled DWDM DFB laser transmitter
- 45 channels ITU-T 100GHz C-Band DWDM wavelength CH17~CH61 available
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 80km~160km over SM fiber
- RoHS Compliant
