100G QSFP28

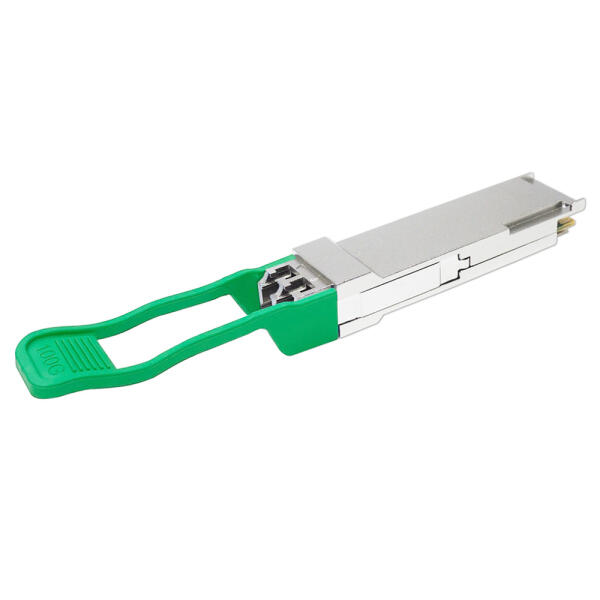

100G-QSFP28-CWDM4/eCWDM4
100G QSFP28 CWDM4/eCWDM4 光纖模組
Hot Pluggable, Duplex LC, CWDM DFB, Single Mode, 2KM~10KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-K7-C13-02D | 100G | CWDM DFB | Duplex LC | SM 2km | 0~70°C | QSFP28-100G-CWDM4 2km | |
| FQ28-K7-C13-10D | 100G | CWDM DFB | Duplex LC | SM 10km | 0~70°C | QSFP28-100G-eCWDM4 10km | |
- 100GBASE-CWDM4 application with FECt
- Data Centers Switch Interconnectt
- Server and Storage Area Network Interconnect
- Compliant with 100GBASE-CWDM4
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- 4CH CWDM MUX / DEMUX design
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- CWDM DFB transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 2km~10km over SM fiber with KR4 FEC
- Maximum Power consumption 3.5W
- RoHS compliant
