100G QSFP28

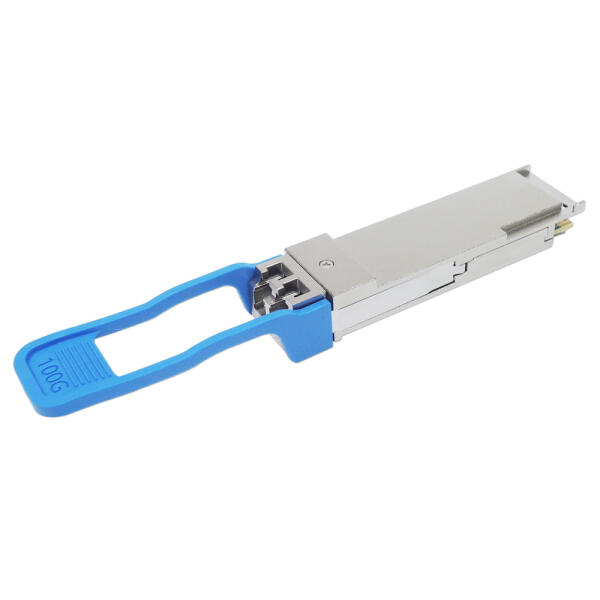

100G-QSFP28-DR1/FR1/LR1/ERL1/ER1 (Single Lambda)
100G QSFP28 Single Lambda DR1/FR1/LR1/ERL1/ER1 光纖模組
Hot Pluggable, Duplex LC, 1310nm EML, Single Mode, 500M~40KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | |
|---|---|---|---|---|---|---|---|
| FQ2S-K7-C13-X5D | 100G | 1311nm EML | Duplex LC | SM 500m (with FEC) | 0~70°C | QSFP28-100G-DR1 (PAM4) | |
| FQ2S-K7-C13-02D | 100G | 1311nm EML | Duplex LC | SM 2km (with FEC) | 0~70°C | QSFP28-100G-FR1 (PAM4) | |
| FQ2S-K7-C13-10D | 100G | 1311nm EML | Duplex LC | SM 10km (with FEC) | 0~70°C | QSFP28-100G-LR1 (PAM4) | |
| FQ2S-K7-C13-15D | 100G | 1311nm EML | Duplex LC | SM 15km (with FEC) | 0~70°C | QSFP28-100G-LR1 15km (PAM4) | |
- 100GBASE Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Compatible with 100GBASE-LR1
- Signal Conversion between 53.125GBd PAM4 optical signal and 25.78125Gbps NRZ electrical signal with DSP Gear Box
- Built in Tx CDR and Rx CDR
- Inbuild KP4 FEC
- Hot Pluggable QSFP28 footprint
- CWDM 1311nm EML transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Operating Temperature 0~70°C
- Link distance 500m~15km over SM fiber with FEC
- Maximum Power consumption 4.5W
- RoHS compliant
