100G QSFP28
100G-QSFP28-SR1.2-BiDi

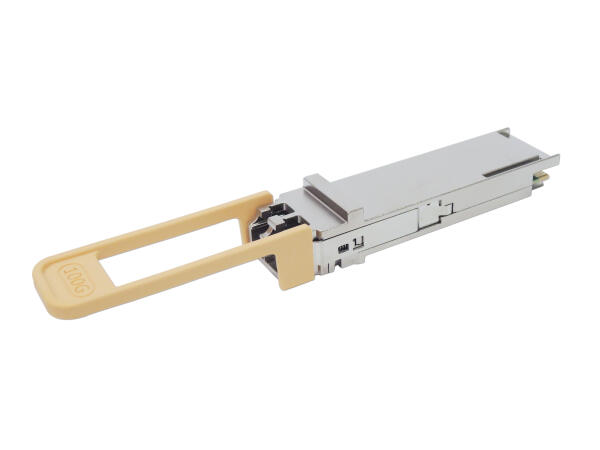

100G QSFP28 SR 1.2 BiDi 光纖模組
Hot Pluggable, Duplex BiDi LC, 850 / 908nm VCSEL, MMF 100M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-KC-C85-X1D | 100G | 850 / 908nm | Duplex Bidi LC | OM3 70m OM4 100m OM5 150m | 0~70°C | QSFP28-100G-SR1.2 BiDi | |
| FQ28-KC-C85-X1D-T10 | 100G | 850 / 908nm | Duplex Bidi LC | OM3 70m OM4 100m OM5 150m | 10~60°C | QSFP28-100G-SR1.2 BiDi, 10-60°C | |
- 100GBASE-SR1.2 Ethernet @103.1G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE 802.3bm 100GBASE-SR1.2
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Dual wavelength 850/908nm VCSEL BiDirectional optical interface
- Optical Data Rate PAM4 2x26.5625GBd
- Electrical Data Rate NRZ 4x25.78125Gbps
- Built in quad Tx CDR and Rx CDR
- Support KP4 FEC at 100Gbps
- Hot Pluggable QSFP28 footprint
- Dual Bidi LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 150m over OM5 fiber, 100m over OM4 fiber and 70m over MM OM3 fiber
- Maximum power consumption 4W
- RoHS compliant
