100G QSFP28
100G-QSFP28-SR4/eSR4

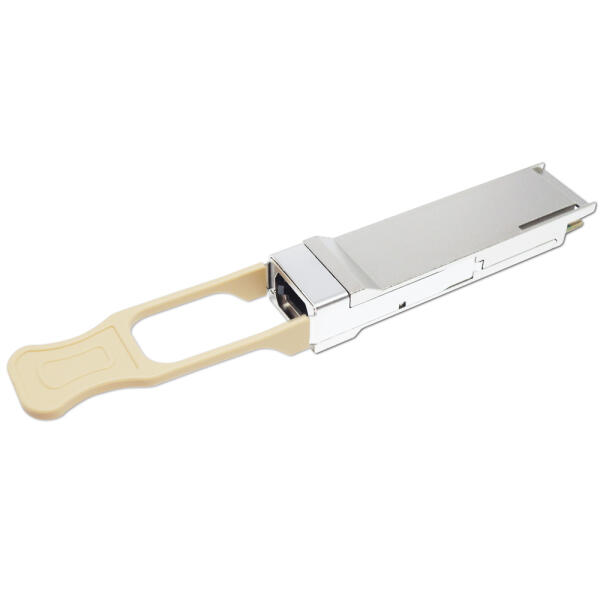

100G QSFP28 SR4/eSR4 光纖模組
Hot Pluggable, MPO / MTP, 850nm VCSEL, Multi-Mode, OM4 100M~300M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-K9-M85-X1D | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | 0~70°C | QSFP28-100G-SR4 Single-Rate, C-Temp | |
| FQ28-K9-M85-X1DR | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | 0~70°C | QSFP28-100G-SR4-Dual Rate | |
| FQ28-K9-M85-X1D-OF1 | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | 0~70°C | QSFP28-100G-SR4-Ethernet, Single-Rate | |
| FQ28-K9-M85-X1Di-OF1 | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | -40~85°C | QSFP28-100G-SR4-Ethernet, Single-Rate, I-Temp | |
| FQ28-K9-M85-X1DR-OF1 | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | 0~70°C | QSFP28-100G-SR4-OTU4, Dual-Rate | |
| FQ28-K9-M85-X1DRi-OF1 | 100G | 850nm | MPO/MTP | OM3 70m OM4 100m | -40~85°C | QSFP28-100G-SR4-OTU4, Dual-Rate, I-Temp | |
| FQ28-K9-M85-X3D | 100G | 850nm | MPO/MTP | OM4 300m | 0~70°C | QSFP28-100G-eSR4-Ethernet | |
- 100GBASE-SR4 Ethernet @103.1G
- Breakout to 4 x 25GBASE-SR Ethernet
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE802.3bm 100GBASE-SR4t
- Compliant with SFF-8665 QSFP28 MSAt
- Compliant with IEEE 802.3bm CAUI-4 Interfacet
- 4 independent full-duplex channelst
- Data Rate 25.78125Gbps per Lane
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- 4CH 850nm VCSEL array transmitter
- 4CH PIN array receiver
- MPO-12 receptacle connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 70m over OM3 fiber and 100m over MM OM4 fiber (QSFP28-100G-SR4)
- Link distance 200m over OM3 and 300m over OM4 MM fiber with Host FEC (QSFP28-100G-eSR4)
- Maximum power consumption 2.5W / 3.5W
- RoHS compliant
