10G SFP+
10G SFP+ CWDM

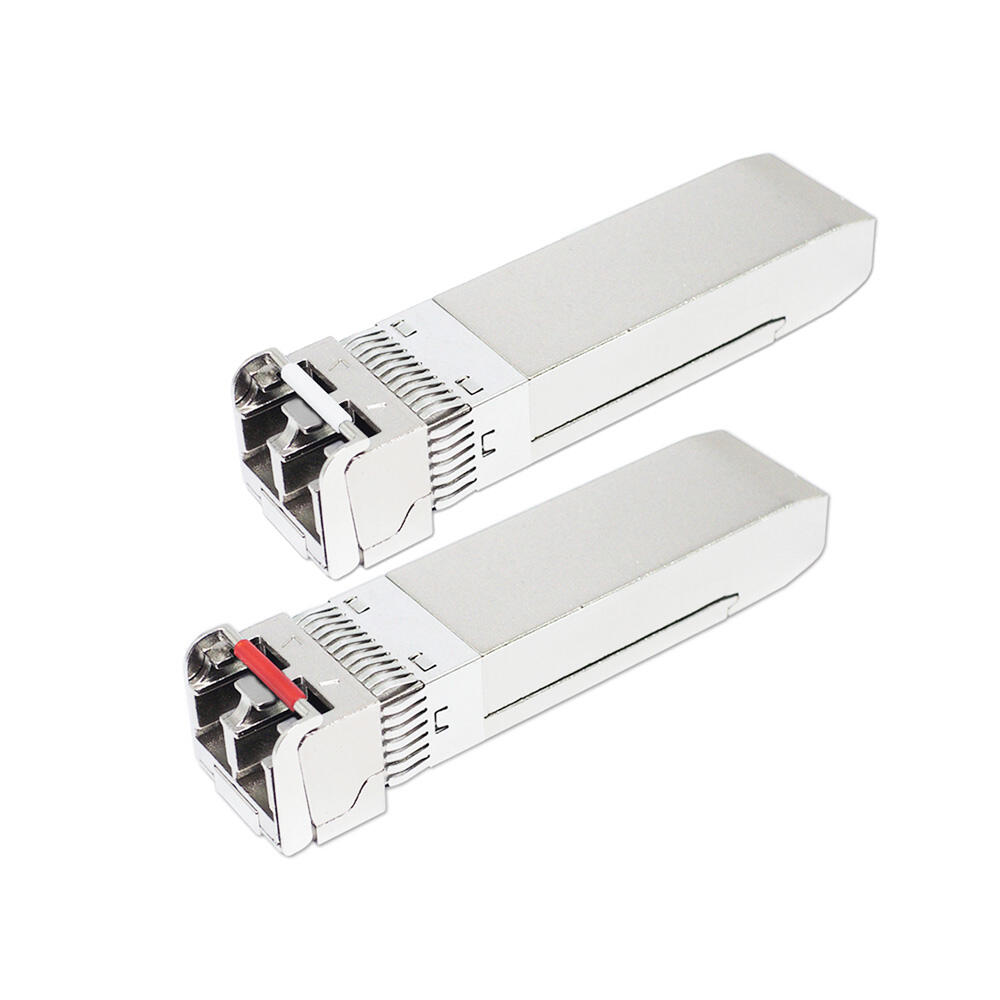

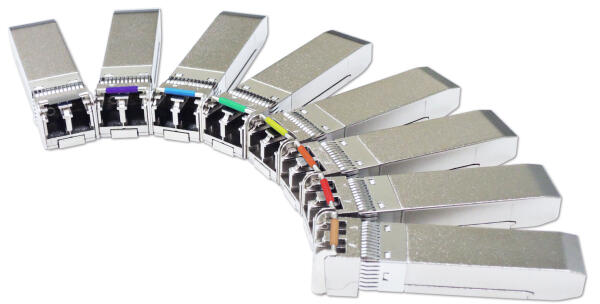

10G CWDM SFP+ 光纖模組
Hot Pluggable, Duplex LC, CWDM DFB / EML, Single Mode, 10KM~100KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-H7-Cxx-10D | 10G | CWDM DFB 1270nm~1570nm | Duplex LC | 10km (8dB) | 0~70°C | SFP+ 10G-CWDMxx-10km (xx = 27~57) | |
| FSPP-H7-Cxx-20D | 10G | CWDM DFB 1270nm~1450nm | Duplex LC | 20km (12dB) | 0~70°C | SFP+ 10G-CWDMxx-20km (xx = 27~45) | |
| FSPP-H7-Cxx-40D | 10G | CWDM DFB 1350nm~1450nm | Duplex LC | 40km (16dB) | 0~70°C | SFP+ 10G-CWDMxx-40km (xx = 35~45) *Can not guaranteed to reach 40km | |
| FSPP-H7-Cxx-40D | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 40km (16dB) | 0~70°C | SFP+ 10G-CWDMxx-40km (xx = 47~61) | |
| FSPP-H7-Cxx-40Di | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 40km (16dB) | -40~85°C | SFP+ 10G-CWDMxx-40km (xx = 47~61), I-Temp | |
| FSPP-H7-Cxx-40DM | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 40km (16dB) | 0~70°C | SFP+ 10G-CWDMxx-40km (xx = 47~61), Multi-Rate | |
| FSPP-H7-Cxx-40DMi | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 40km (16dB) | -40~85°C | SFP+ 10G-CWDMxx-40km (xx = 47~61), Multi-Rate, I-Temp | |
| FSPP-H7-Cxx-60D | 10G | CWDM DFB 1270nm~1330nm | Duplex LC | 60km (23dB) | 0~70°C | SFP+ 10G-CWDMxx-60km (xx = 27~33) | |
| FSPP-H7-Cxx-80D | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 80km (23dB) | 0~70°C | SFP+ 10G-CWDMxx-80km (xx = 47~61) | |
| FSPP-H7-Cxx-80Di | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 80km (23dB) | -40~85°C | SFP+ 10G-CWDMxx-80km (xx = 47~61), I-Temp | |
| FSPP-H7-Cxx-b08D | 10G | CWDM DFB 1270nm~1610nm | Duplex LC | 8dB (10km) | 0~70°C | SFP+ 10G-CWDMxx-8dB(10km) (xx = 27~61) | |
| FSPP-H7-Cxx-b08Di | 10G | CWDM DFB 1270nm~1610nm | Duplex LC | 8dB (10km) | -40~85°C | SFP+ 10G-CWDMxx-8dB(10km) (xx = 27~61), I-Temp | |
| FSPP-H7-Cxx-b12D | 10G | CWDM DFB 1270nm~1450nm | Duplex LC | 12dB (20km) | 0~70°C | SFP+ 10G-CWDMxx-12dB(20km) (xx = 27~45) | |
| FSPP-H7-Cxx-b12Di | 10G | CWDM DFB 1270nm~1450nm | Duplex LC | 12dB (20km) | -40~85°C | SFP+ 10G-CWDMxx-12dB(20km) (xx = 27~45), I-Temp | |
| FSPP-H7-Cxx-b26D | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 26dB (100km) | 0~70°C | SFP+ 10G-CWDMxx-26dB(100km) (xx = 47~61) | |
| FSPP-H7-Cxx-b26Di | 10G | CWDM EML 1470nm~1610nm | Duplex LC | 26dB (100km) | -40~85°C | SFP+ 10G-CWDMxx-26dB(100km) (xx = 47~61), I-Temp | |
- 10GBASEEthernet @10.3125G
- Fiber Channel 800-SM-LC-L 8GFC @8.5G, 1200-SM-LL-L 10GFC @10.51875G
- SONET OC-192 & SDH STM-64 @9.953G
- CPRI Option #7 @9.83G, #8 @10.1376G
- OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
- 10G CWDM Networks
- Compliant with 10GBASE
- Compliant with CPRI Option 7, 8
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- Support 8.5Gb/s to 11.32Gb/s Multi-Rate
- Hot Pluggable
- CWDM DFB/EML laser transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km~100km over SM fiber
- RoHS Compliant
