10G SFP+
10G SFP+ DWDM-Tunable

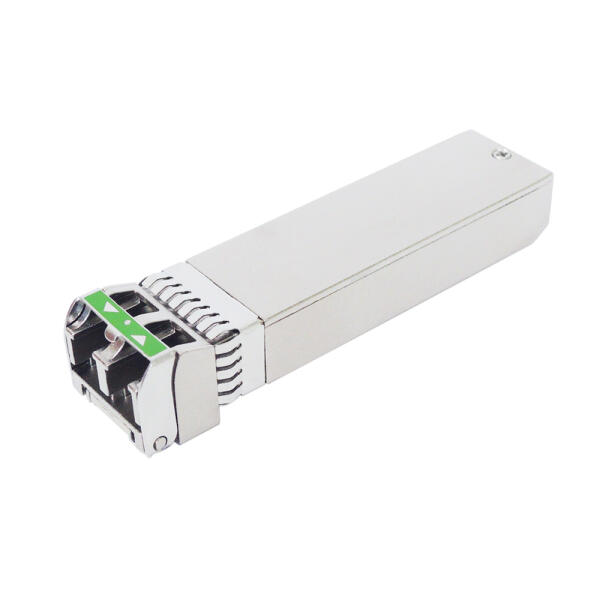

10G SFP+ DWDM Tunable 光纖模組
Hot Pluggable, Duplex LC, 50GHz DWDM MZM, SMF 80KM
| 產品料號 | 資料傳輸率 | 傳輸距離 | 波長 | 連接器 | 輸出功率 | 高感度 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|---|---|
| FSPP-H7-DTU-80D | 10Gs | SM 80km | 50GHz DWDM MZM | Duplex LC | 0 ~ +4dBm | -24dBm | 0~70°C | SFP+DWDM-Tunable-ZR 80km-50GHz | |
| FSPP-H7-DTU-80Di | 10G | SM 80km | 50GHz DWDM MZM | Duplex LC | 0 ~ +4dBm | -24dBm | -40~85°C | SFP+DWDM-Tunable-ZR 80km-50GHz, I-Temp | |
- 10GBASE-LR/LW Ethernet @10.3125G
- Fiber Channel 800-SM-LC-L 8GFC @8.5G,
1200-SM-LL-L 10GFC @10.51875G - SONET OC-192 & SDH STM-64 @9.953G
- CPRI Option #7 @9.83G, #8 @10.1376G
- OTN OTU2 @10.7G, OTU2e @11.09G,
OTU2f @11.32G - 10G DWDM Networks
- Compliant with 10GBASE-ZR/ZW
- Compliant with SONET OC192/ SDH STM64 with ITU-T G.709 and G.959.1 P1L1-2D2
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- Hot Pluggable
- 50GHz ITU Grid channel spacing with integrated wavelength locker and auto-tuning technology
- Monolithically integrated full C-band DWDM tunable transmitter
- APD receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 80km over SM fiber
- Maximum power consumption 2.5W
- RoHS Compliant
