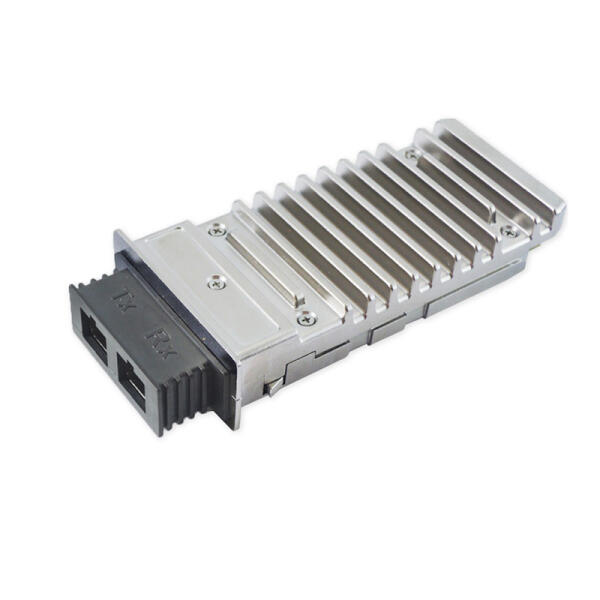

10G X2
10G X2-Duplex
10G X2 光纖模組
Hot Pluggable, Duplex SC, 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 300M~80KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FXF2-H1-M85-X3D | 10G | 850nm | Duplex SC | OM3 300m | 0~70°C | X2-10G-SR | |
| FXF2-H1-S13-10D | 10G | 1310nm | Duplex SC | SM 10km | 0~70°C | X2-10G-LR | |
| FXF2-H1-S15-40D | 10G | 1550nm | Duplex SC | SM 40km | 0~70°C | X2-10G-ER | |
| FXF2-H1-S15-80D | 10G | 1550nm | Duplex SC | SM 80km | 0~70°C | X2-10G-ZR | |
- 10G Gigabit Ethernet
- Compliant to IEEE802.3ae 10GBASE-SR/LR/ER/ZR
- Compliant to X2 MSA
- XAUI Electrical Interface: 4 Lanes @3.125Gb/s
- Hot Pluggable
- 850nm/1310nm/1550nm transmitter
- Duplex SC connector
- MDIO Management Interface
- Support DDM function
- Link length up to 300m~10km over single mode fiber
- RoHS compliant
