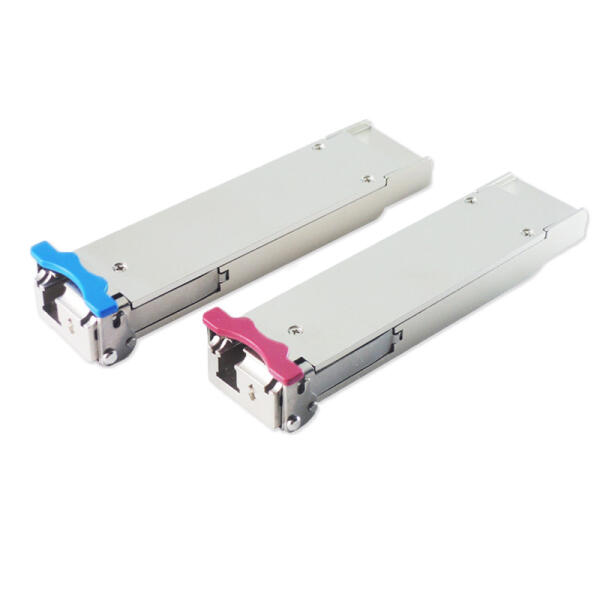

10G BIDI Single-Fiber XFP 光纖模組
Hot Pluggable, BiDi LC, 1270nm / 1330nm / 1490nm / 1550nm, Single Mode, 10KM~80KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FXFP-H8-C27-20D | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 20km | 0~70°C | XFP-10G-BX20-27 | |
| FXFP-H8-C27-20Di | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 20km | -40~85°C | XFP-10G-BX20-27, I-Temp | |
| FXFP-H8-C27-20De | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 20km | -5~85°C | XFP-10G-BX20-27, E-Temp | |
| FXFP-H8-C33-20D | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 20km | 0~70°C | XFP-10G-BX20-33 | |
| FXFP-H8-C33-20Di | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 20km | -40~85°C | XFP-10G-BX20-33, I-Temp | |
| FXFP-H8-C33-20De | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 20km | -5~85°C | XFP-10G-BX20-33, E-Temp | |
| FXFP-H8-C27-40D | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 40km | 0~70°C | XFP-10G-BX40-27 | |
| FXFP-H8-C27-40Di | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 40km | -40~85°C | XFP-10G-BX40-27, I-Temp | |
| FXFP-H8-C27-40De | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 40km | -5~85°C | XFP-10G-BX40-27, E-Temp | |
| FXFP-H8-C33-40D | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 40km | 0~70°C | XFP-10G-BX40-33 | |
| FXFP-H8-C33-40Di | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 40km | -40~85°C | XFP-10G-BX40-33, I-Temp | |
| FXFP-H8-C33-40De | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 40km | -5~85°C | XFP-10G-BX40-33, E-Temp | |
| FXFP-H8-C27-60D | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 60km | 0~70°C | XFP-10G-BX60-27 | |
| FXFP-H8-C27-60Di | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 60km | -40~85°C | XFP-10G-BX60-27, I-Temp | |
| FXFP-H8-C27-60De | 10G | Tx1270nm / Rx1330nm | BiDi LC | SM 60km | -5~85°C | XFP-10G-BX60-27, E-Temp | |
| FXFP-H8-C33-60D | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 60km | 0~70°C | XFP-10G-BX60-33 | |
| FXFP-H8-C33-60Di | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 60km | -40~85°C | XFP-10G-BX60-33, I-Temp | |
| FXFP-H8-C33-60De | 10G | Tx1330nm / Rx1270nm | BiDi LC | SM 60km | -5~85°C | XFP-10G-BX60-33, E-Temp | |
| FXFP-H8-C49-80D | 10G | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | 0~70°C | XFP-10G-BX80-49 | |
| FXFP-H8-C49-80Di | 10G | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | -40~85°C | XFP-10G-BX80-49, I-Temp | |
| FXFP-H8-C55-80D | 10G | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | 0~70°C | XFP-10G-BX80-55 | |
| FXFP-H8-C55-80Di | 10G | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | -40~85°C | XFP-10G-BX80-55, I-Temp | |
- 10GBASE-BX(BR) Ethernet @10.3125G
- Fiber Channel 1200-SM-LL-L 10GFC @10.51875G
- SONET OC-192 & SDH STM-64 @9.953G
- CPRI Option #8 @10.1376G
- OTN OTU2 @10.7G, OTU2e @11.09G,OTU2f @11.32G
- Compatible with IEEE802.3ae 10GBASE-BX(BR)
- Compliant with CPRI Option 8
- Compliant with INF-8077i XFP MSA
- Support 9.953Gb/s to 11.32Gb/s Multi-Rate
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable XFP footprint
- 1270nm/1330nm/1490nm/1550nm laser transmitter
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km~80km over SM fiber
- RoHS Compliant
