10G XFP
10G XFP-DWDM-Tunable 光纖模組

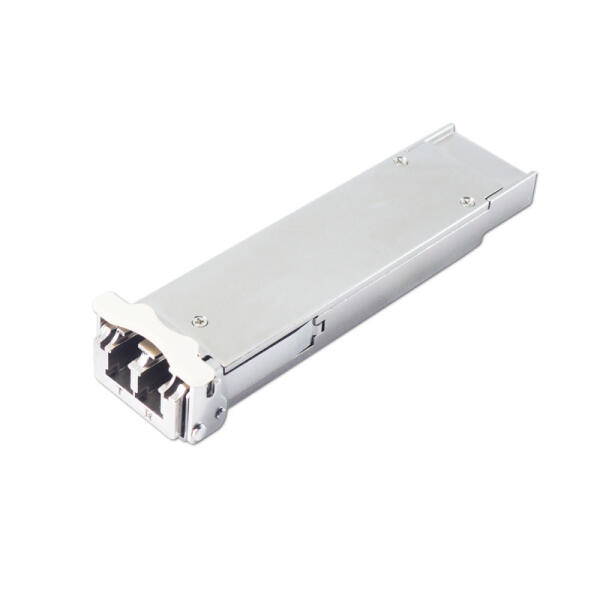

10G XFP-DWDM-Tunable 光纖模組

10G XFP-DWDM-Tunable

10G XFP DWDM Tunable 光纖模組
Hot Pluggable, Duplex LC, 50GHz DWDM ILMZ, SMF 80KM


產品料號資料傳輸率波長連接器傳輸距離操作溫度備註規格書
FSPP-H7-DTU-80D10G50GHz DWDM ILMZDuplex LCSM 80km0~70°CXFP-10G-DWDM-Tunable 80km

  • 10GBASE-ZR/ZW Ethernet @10.3125G
  • Fiber Channel 1200-SM-LL-L 10GFC @10.51875G
  • SONET OC-192 & SDH STM-64 @9.953G
  • CPRI Option #8 @10.1376G
  • OTN OTU2 @10.7G, OTU2e @11.09G, OTU2f @11.32G
  • 10G DWDM Networks

  • Compliant with IEEE802.3ae 10GBASE-ZR/ZW
  • Compliant with CPRI Option 8
  • Compliant with INF-8077i XFP MSA
  • Data Rate 9.953Gb/s to 11.32Gb/s
  • Hot Pluggable XFP footprint
  • 50GHz ITU Grid channel spacing with integrated wavelength locker
  • Monolithically integrated full C-band DWDM tunable transmitter
  • APD receiver
  • Duplex LC connector
  • No Reference Clock required
  • 2-wire interface for management and diagnostic monitor
  • Dual +3.3V and 5.0V power supply
  • Link distance 80km over SM fiber
  • Maximum Power consumption 3.5W
  • RoHS Compliant
