PON SFP+
10G XG/XGS PON

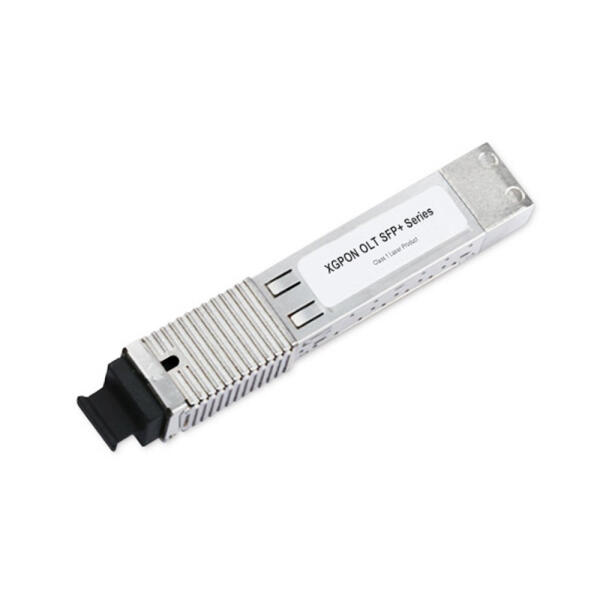

10G XGPON/XGSPON OLT SFP+ 光纖模組
Hot Pluggable, BiDi SC, Tx1557nm / Rx1270nm, Single Mode, 20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-H2-PX5-20x (N1) | 10G | Tx1577nm / Rx1270nm | BiDi SC | PON 20km | 0~70°C | SFP+ XG-PON OLT | |
| FSPP-H2-PX5-20x (N2a) | 10G | Tx1577nm / Rx1270nm | BiDi SC | PON 20km | 0~70°C | SFP+ XG-PON OLT | |
| FSPP-H2-PX6-20x (N1) | 10G | Tx1577nm / Rx1270nm | BiDi SC | PON 20km | 0~70°C | SFP+ XGS-PON OLT | |
| FSPP-H2-PX6-20x (N2) | 10G | Tx1577nm / Rx1270nm | BiDi SC | PON 20km | 0~70°C | SFP+ XGS-PON OLT | |
- XGPON OLT for P2MP applications
- FTTx projects
- Compliant with ITU-T G.9807.1 XGPON OLT
- Compliant with SFF-8431, SFF-8432 SFP+ MSA
- XGPON upstream signals are in Time Division Multiplex mode
- Digital receiving signal strength indication (RSSI)
- Hot Pluggable
- Simplex SC/UPC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 20km over SM fiber
- RoHS Compliant
