125M/155M SFP
125M/155M SFP-BIDI

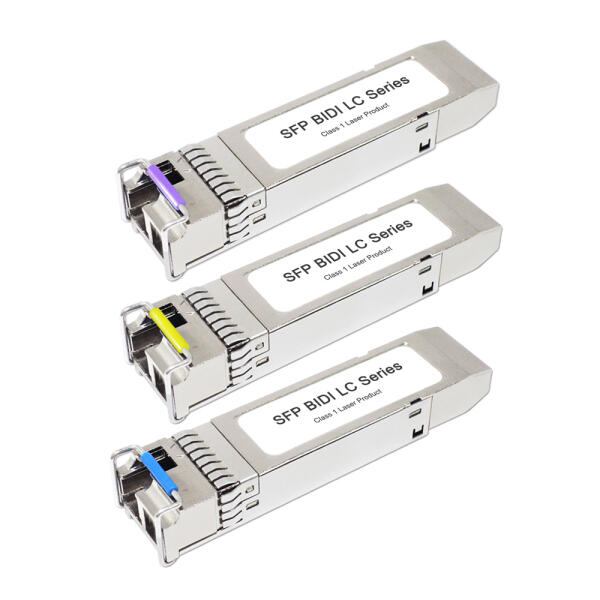

125M Fast Ethernet, 155M STM-1/OC-3 BiDi Single-Fiber SFP 光纖模組
Hot Pluggable, BiDi LC / SC, 1310nm / 1490nm / 1550nm, Multi-Mode / Single Mode, 2KM~120KM
BIDI LC Connector
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-A8-M35-02D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | MM 2km | 0~70°C | SFP-100BXM2-U3 | |
| FSFP-A8-M53-02D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | MM 2km | 0~70°C | SFP-100BXM2-D5 | |
| FSFP-A8-S35-20D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | 0~70°C | SFP-100BX20-U3 | |
| FSFP-A8-S35-20Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 20km | -40~85°C | SFP-100BX20-U3, I-Temp | |
| FSFP-A8-S53-20D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | 0~70°C | SFP-100BX20-D5 | |
| FSFP-A8-S53-20Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 20km | -40~85°C | SFP-100BX20-D5, I-Temp | |
| FSFP-A8-S35-40D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | 0~70°C | SFP-100BX40-U3 | |
| FSFP-A8-S35-40Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 40km | -40~85°C | SFP-100BX40-U3, I-Temp | |
| FSFP-A8-S53-40D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | 0~70°C | SFP-100BX40-D5 | |
| FSFP-A8-S53-40Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 40km | -40~85°C | SFP-100BX40-D5, I-Temp | |
| FSFP-A8-S35-60D | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | 0~70°C | SFP-100BX60-U3 | |
| FSFP-A8-S35-60Di | 125/155M | Tx1310nm / Rx1550nm | BiDi LC | SM 60km | -40~85°C | SFP-100BX60-U3, I-Temp | |
| FSFP-A8-S53-60D | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | 0~70°C | SFP-100BX60-D5 | |
| FSFP-A8-S53-60Di | 125/155M | Tx1550nm / Rx1310nm | BiDi LC | SM 60km | -40~85°C | SFP-100BX60-D5, I-Temp | |
| FSFP-A8-S45-80D | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | 0~70°C | SFP-100BX80-U4 | |
| FSFP-A8-S45-80Di | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 80km | -40~85°C | SFP-100BX80-U4, I-Temp | |
| FSFP-A8-S54-80D | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | 0~70°C | SFP-100BX80-D5 | |
| FSFP-A8-S54-80Di | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 80km | -40~85°C | SFP-100BX80-D5, I-Temp | |
| FSFP-A8-S45-A2D | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | 0~70°C | SFP-100BX120-U4 | |
| FSFP-A8-S45-A2Di | 125/155M | Tx1490nm / Rx1550nm | BiDi LC | SM 120km | -40~85°C | SFP-100BX120-U4, I-Temp | |
| FSFP-A8-S54-A2D | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | 0~70°C | SFP-100BX120-D5 | |
| FSFP-A8-S54-A2Di | 125/155M | Tx1550nm / Rx1490nm | BiDi LC | SM 120km | -40~85°C | SFP-100BX120-D5, I-Temp | |
BIDI SC Connector
| Part Number | Data Rate | Wavelength | Connector | Distance | Temperature | Remark | Datasheet |
|---|---|---|---|---|---|---|---|
| FSFP-A2-M35-02D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | MM 2km | 0~70°C | SFP-100BXM2-U3-SC | |
| FSFP-A2-M53-02D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | MM 2km | 0~70°C | SFP-100BXM2-D5-SC | |
| FSFP-A2-S35-20D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | 0~70°C | SFP-100BX20-U3-SC | |
| FSFP-A2-S35-20Di | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 20km | -40~85°C | SFP-100BX20-U3-SC, I-Temp | |
| FSFP-A2-S53-20D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | 0~70°C | SFP-100BX20-D5-SC | |
| FSFP-A2-S53-20Di | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 20km | -40~85°C | SFP-100BX20-D5-SC, I-Temp | |
| FSFP-A2-S35-40D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 40km | 0~70°C | SFP-100BX40-U3-SC | |
| FSFP-A2-S53-40D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 40km | 0~70°C | SFP-100BX40-D5-SC | |
| FSFP-A2-S35-60D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 60km | 0~70°C | SFP-100BX60-U3-SC | |
| FSFP-A2-S53-60D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 60km | 0~70°C | SFP-100BX60-D5-SC | |
| FSFP-A2-S35-80D | 125/155M | Tx1310nm / Rx1550nm | BiDi SC | SM 80km | 0~70°C | SFP-100BX80-U3-SC | |
| FSFP-A2-S53-80D | 125/155M | Tx1550nm / Rx1310nm | BiDi SC | SM 80km | 0~70°C | SFP-100BX80-D5-SC | |
| FSFP-A2-S45-A2D | 125/155M | Tx1490nm / Rx1550nm | BiDi SC | SM 120km | 0~70°C | SFP-100BX120-U4-SC | |
| FSFP-A2-S54-A2D | 125/155M | Tx1550nm / Rx1490nm | BiDi SC | SM 120km | 0~70°C | SFP-100BX120-D5-SC | |
- Fast Ethernet 100BASE-BX10 @125M
- SONET OC-3 / SDH STM-1 @155M
- Compliant with IEEE802.3ah 100BASE-BX10-D
- Compatible with SONET OC-3 IR-2 and SDH STM-1 S1.2
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- 1310nm/1490nm/1550nm laser transmitter
- BiDi LC/SC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 2km~120km over SM fiber
- RoHS Compliant
