125M/155M SFP

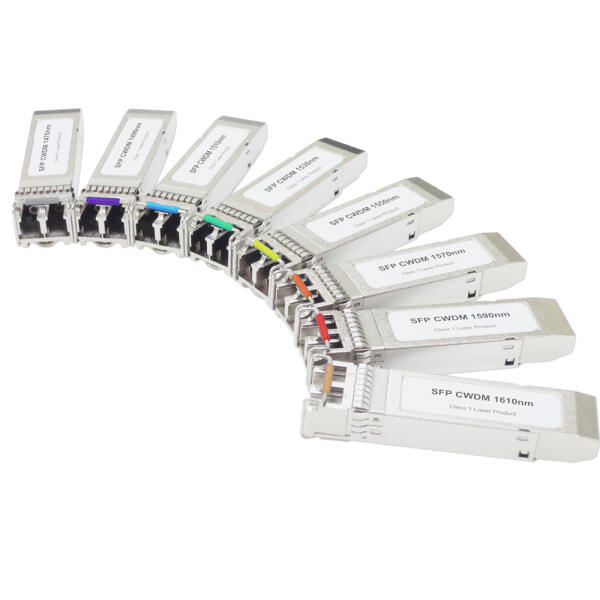

125M/155M SFP-CWDM
125M Fast Ethernet, 155M STM-1/OC-3 CWDM SFP 光纖模組
Hot Pluggable, Duplex LC, CWDM1470~1610nm, Single Mode, 80KM~120KM
| 產品料號 | 資料傳輸率 | 傳輸距離 | 波長 | 連接器 | 輸出功率 | 高感度 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|---|---|
| FSFP-A7-Cxx-80D | 125/155M | SM 80km | CWDM-L 1470~1610nm | Duplex LC | -5 ~ +1dBm | -34dBm | 0~70°C | SFP-100CWDMxx-80km (xx = 47~61) | |
| FSFP-A7-Cxx-A0D | 125/155M | SM 100km | CWDM-L 1470~1610nm | Duplex LC | -3 ~ +3dBm | -34dBm | 0~70°C | SFP-100CWDMxx-100km (xx = 47~61) | |
| FSFP-A7-Cxx-A2D | 125/155M | SM 120km | CWDM-L 1470~1610nm | Duplex LC | 0 ~ +5dBm | -36dBm | 0~70°C | SFP-100CWDMxx-120km (xx = 47~61) | |
| FSFP-A7-Cxx-b30D | 125/155M | 30dB (80~100km) | CWDM DFB 1270nm~1610nm | Duplex LC | -2 ~ +2dBm | -32dBm | 0~70°C | SFP-100CWDM-30dB (80-100km) | |
| FSFP-A7-Cxx-b30Di | 125/155M | 30dB (80~100km) | CWDM DFB 1270nm~1610nm | Duplex LC | -2 ~ +2dBm | -32dBm | -40~85°C | SFP-100CWDM-30dB (80-100km), I-Temp | |
| FSFP-A7-Cxx-b34D | 125/155M | 34dB (100~120km) | CWDM DFB 1270nm~1610nm | Duplex LC | 0 ~ +5dBm | -34dBm | 0~70°C | SFP-100CWDM-34dB (100~120km) | |
| FSFP-A7-Cxx-b34Di | 125/155M | 34dB (100~120km) | CWDM DFB 1270nm~1610nm | Duplex LC | 0 ~ +5dBm | -34dBm | -40~85°C | SFP-100CWDM-34dB (100~120km), I-Temp | |
| FSFP-A7-Cxx-b36D | 125/155M | 36dB (120~140km) | CWDM DFB 1270nm~1610nm | Duplex LC | +1 ~ +5dBm | -35dBm | 0~70°C | SFP-100CWDM-36dB (120-140km) | |
| FSFP-A7-Cxx-b36Di | 125/155M | 36dB (120~140km) | CWDM DFB 1270nm~1610nm | Duplex LC | +1 ~ +5dBm | -35dBm | -40~85°C | SFP-100CWDM-36dB (120-140km), I-Temp | |
- Fast Ethernet 100BASE-ZX @125M
- SONET OC-3 / SDH STM-1 @155M
- CWDM Networks
- Compatible with IEEE802.3 100BASE Ethernet
- Compatible with SONET OC-3 LR-2 and SDH STM-1 L1.2
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- Uncooled CWDM DFB laser transmitter and PIN receiver
- 18 CWDM Wavelength 1270~1610nm available
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 80km~140km over SM fiber for 1470~1610nm
- RoHS Compliant
