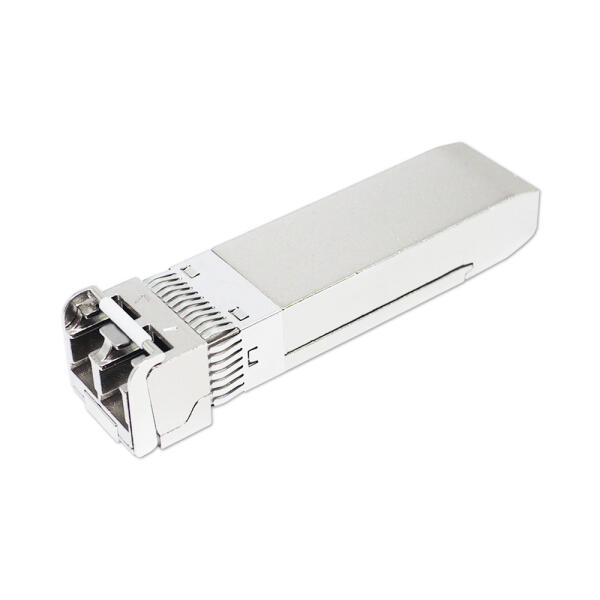

125M/155M SFP
125M/155M SFP-DWDM
125M Fast Ethernet, 155M DWDM SFP 光纖模組
Hot Pluggable, Duplex LC, DWDM DFB, Single Mode, 200KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSFP-A7-Dxx-B0D | 125/155M | DWDM DFB | Duplex LC | SM 200km | 0~70°C | SFP-100DWDMxx-200km | |
| FSFP-A7-Dxx-B0Di | 125/155M | DWDM DFB | Duplex LC | SM 200km | -40~85°C | SFP-100DWDMxx-200km, I-Temp | |
- Fast Ethernet 100BASE-ZX @125M
- SONET OC-3 / SDH STM-1 @155M
- DWDM Networks
- Compatible with 100BASE-ZX
- Compatible with SONET OC-3 LR-2 and SDH STM-1 L1.2
- Compliant with INF-8074i SFP MSA
- Hot Pluggable
- Cooled DWDM DFB laser transmitter
- APD receiver
- 45 channels ITU-T 100GHz C-Band DWDM wavelength CH17~CH61 available
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Maximum Power consumption 1.6W
- Link distance 200km(46dB) over SM fiber
- RoHS Compliant
