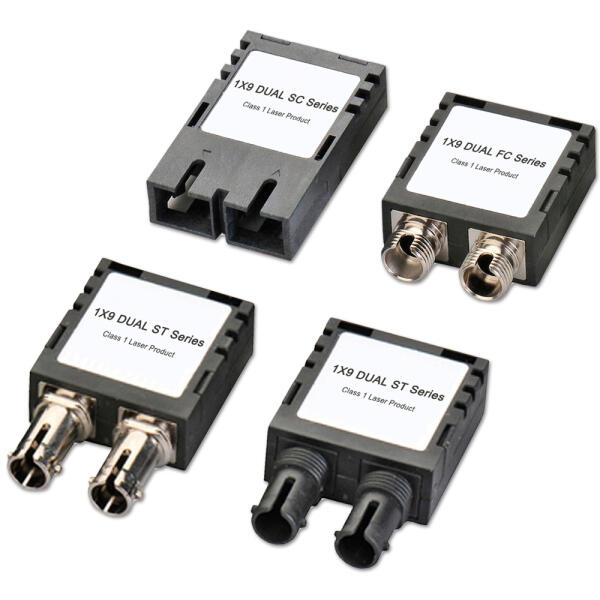

125M/155M 1X9-DUAL 光纖模組
125M/155M 1X9-DUAL 光纖模組

125M/155M 1X9-Duplex

125M Fast Ethernet, 155M STM-1/OC-3 1X9 光纖模組
Duplex SC / FC / ST(plastic) / ST(metal), 850nm / 1310nm / 1550nm, Multi-Mode / Single Mode, 2KM~120KM


SC Connector

產品料號資料傳輸率波長連接器傳輸距離溫度備註規格書
F1X9-A1-M85-02P125M/155M850nmDuplex SCMM 2km0~70°C1X9-100SX-SC
F1X9-A1-M85-02Pi125M/155M850nmDuplex SCMM 2km-40~85°C1X9-100SX-SC, SD=LVPECL, I-Temp
F1X9-A1-M13-02P125M/155M1310nmDuplex SCMM 2km0~70°C1X9-100FX-SC
F1X9-A1-M13-02Pi125M/155M1310nmDuplex SCMM 2km-40~85°C1X9-100FX-SC, SD=LVPECL, I-Temp
F1X9-A1-S13-20P125M/155M1310nmDuplex SCSM 20km0~70°C1X9-100LX20-SC
F1X9-A1-S13-20Pi125M/155M1310nmDuplex SCSM 20km-40~85°C1X9-100LX20-SC, I-Temp
F1X9-A1-S13-30P125M/155M1310nmDuplex SCSM 30km0~70°C1X9-100LX30-SC
F1X9-A1-S13-30Pi125M/155M1310nmDuplex SCSM 30km-40~85°C1X9-100LX30-SC, SD=LVPECL, I-Temp
F1X9-A1-S13-40Pi125M/155M1310nmDuplex SCSM 40km-40~85°C1X9-100EX40-SC, SD=LVPECL, I-Temp
F1X9-A1-S13-60P125M/155M1310nmDuplex SCSM 60km0~70°C1X9-100EX60-SC
F1X9-A1-S13-60Pi125M/155M1310nmDuplex SCSM 60km-40~85°C1X9-100EX60-SC, I-Temp
F1X9-A1-S15-80P125M/155M1550nmDuplex SCSM 80km0~70°C1X9-100ZX-SC
F1X9-A1-S15-80Pi125M/155M1550nmDuplex SCSM 80km-40~85°C1X9-100ZX-SC, I-Temp
F1X9-A1-S15-A0P125M/155M1550nmDuplex SCSM 100km0~70°C1X9-100ZX100-SC
F1X9-A1-S15-A0Pi125M/155M1550nmDuplex SCSM 100km-40~85°C1X9-100ZX100-SC, I-Temp
F1X9-A1-S15-A2P125M/155M1550nmDuplex SCSM 120km0~70°C1X9-100EZX-SC
F1X9-A1-S15-A2Pi125M/155M1550nmDuplex SCSM 120km-40~85°C1X9-100EZX-SC, I-Temp

FC Connector

Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
F1X9-A3-M85-02P125M/155M850nmDuplex FCMM 2km0~70°C1X9-100SX-FC
F1X9-A3-M13-02P125M/155M1310nmDuplex FCMM 2km0~70°C1X9-100FX-FC
F1X9-A3-M13-02Pi125M/155M1310nmDuplex FCMM 2km-40~85°C1X9-100FX-FC, I-Temp
F1X9-A3-S13-30P125M/155M1310nmDuplex FCSM 30km0~70°C1X9-100LX30-FC
F1X9-A3-S13-30Pi125M/155M1310nmDuplex FCSM 30km-40~85°C1X9-100LX30-FC, I-Temp
F1X9-A3-S13-60P125M/155M1310nmDuplex FCSM 60km0~70°C1X9-100EX60-FC
F1X9-A3-S13-60Pi125M/155M1310nmDuplex FCSM 60km-40~85°C1X9-100EX60-FC, I-Temp
F1X9-A3-S15-80P125M/155M1550nmDuplex FCSM 80km0~70°C1X9-100ZX-FC
F1X9-A3-S15-A0P125M/155M1550nmDuplex FCSM 100km0~70°C1X9-100ZX100-FC
F1X9-A3-S15-A0Pi125M/155M1550nmDuplex FCSM 100km-40~85°C1X9-100ZX100-FC, I-Temp
F1X9-A3-S15-A2P125M/155M1550nmDuplex FCSM 120km0~70°C1X9-100ZX100-FC
F1X9-A3-S15-A2Pi125M/155M1550nmDuplex FCSM 120km-40~85°C1X9-100EZX-FC, I-Temp

ST Connector (plastic)

Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
F1X9-A5-M85-02P125M/155M850nmDuplex STMM 2km0~70°C1X9-100SX-ST
F1X9-A5-M85-02Pi125M/155M850nmDuplex STMM 2km-40~85°C1X9-100SX-ST, I-Temp
F1X9-A5-M13-02P125M/155M1310nmDuplex STMM 2km-40~85°C1X9-100FX-ST
F1X9-A5-M13-02Pi125M/155M1310nmDuplex STMM 2km-40~85°C1X9-100FX-ST(Plastic), SD=LVPECL, I-Temp
F1X9-A5-S13-30P125M/155M1310nmDuplex STSM 30km0~70°C1X9-100LX30-ST
F1X9-A5-S13-30Pi125M/155M1310nmDuplex STSM 30km-40~85°C1X9-100LX30-ST, I-Temp
F1X9-A5-S13-60P125M/155M1310nmDuplex STSM 60km0~70°C1X9-100EX60-ST
F1X9-A5-S13-60Pi125M/155M1310nmDuplex STSM 60km-40~85°C1X9-100EX60-ST, I-Temp
F1X9-A5-S15-80P125M/155M1550nmDuplex STSM 80km0~70°C1X9-100ZX-ST
F1X9-A5-S15-80Pi125M/155M1550nmDuplex STSM 80km-40~85°C1X9-100ZX-ST, I-Temp
F1X9-A5-S15-A0P125M/155M1550nmDuplex STSM 100km0~70°C1X9-100ZX100-ST
F1X9-A5-S15-A0Pi125M/155M1550nmDuplex STSM 100km-40~85°C1X9-100ZX100-ST, I-Temp
F1X9-A5-S15-A2P125M/155M1550nmDuplex STSM 120km0~70°C1X9-100EZX-ST
F1X9-A5-S15-A2Pi125M/155M1550nmDuplex STSM 120km-40~85°C1X9-100EZX-ST, I-Temp

ST Connector (metal)

Part NumberData RateWavelengthConnectorDistanceTemperatureRemarkDatasheet
F1X9-AM-M85-02P125M/155M850nmDuplex STMM 2km0~70°C1X9-100SX-ST
F1X9-AM-M85-02Pi125M/155M850nmDuplex STMM 2km-40~85°C1X9-100SX-ST, I-Temp
F1X9-AM-M13-02P125M/155M1310nmDuplex STMM 2km0~70°C1X9-100FX-ST
F1X9-AM-M13-02Pi125M/155M1310nmDuplex STMM 2km-40~85°C1X9-100FX-ST, I-Temp
F1X9-AM-S13-30P125M/155M1310nmDuplex STSM 30km0~70°C1X9-100LX30-ST
F1X9-AM-S13-30Pi125M/155M1310nmDuplex STSM 30km-40~85°C1X9-100LX30-ST, I-Temp
F1X9-AM-S13-60P125M/155M1310nmDuplex STSM 60km0~70°C1X9-100EX60-ST
F1X9-AM-S13-60Pi125M/155M1310nmDuplex STSM 60km-40~85°C1X9-100EX60-ST, I-Temp
F1X9-AM-S15-80P125M/155M1550nmDuplex STSM 80km0~70°C1X9-100ZX-ST
F1X9-AM-S15-A0P125M/155M1550nmDuplex STSM 100km0~70°C1X9-100ZX100-SC
F1X9-AM-S15-A0Pi125M/155M1550nmDuplex STSM 100km-40~85°C1X9-100ZX100-SC, I-Temp
F1X9-AM-S15-A2P125M/155M1550nmDuplex STSM 120km0~70°C1X9-100EZX-ST
F1X9-AM-S15-A2Pi125M/155M1550nmDuplex STSM 120km-40~85°C1X9-100EZX-ST, I-Temp

  • Fast Ethernet 100BASE @125M
  • SDH STM-1 / SONET OC-3 @155M

  • Compatible with IEEE802.3ah 100BASE
  • Compatible with SDH STM-1 S1.1 and SONET OC-3 IR-1
  • 850nm/1310nm/1550nm FP laser transmitter
  • SC/FC/ST(plastic)/ST(metal) connector
  • Single 3.3V or 5V Power Supply
  • DC-coupled Differential LVPECL inputs and outputs
  • LVPECL / PECL Signal Detection Output
  • Wave Solderable and Aqueous Washable
  • Link distance 2km~120km over MM/SM fiber
  • RoHS Compliant
