1.25G 2X5-SFF

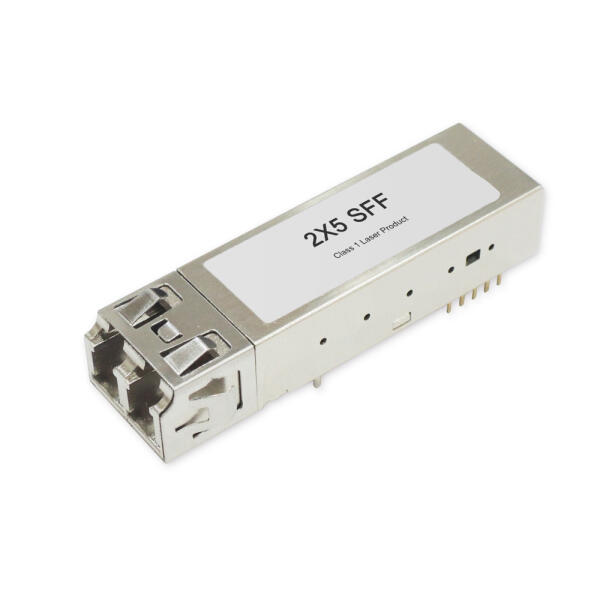

1.25G 2X5 SFF-Duplex
2x5 SFF 1000BASE Transceiver
Hot Pluggable, Duplex LC, 850nm / 1310nm, Multi-Mode / Single Mode, 2km~10km
| 產品料號 | 資料傳輸率 | 傳輸距離 | 波長 | 連接器 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSF1-C7-M85-X5TR | 125M/1.25G | MM 2km/500m | 850nm | Duplex LC | 0~70°C | 2x5-100SX,1000SX | |
| FSF1-C7-M85-X5TRi | 125M/1.25G | MM 2km/500m | 850nm | Duplex LC | -40~85°C | 2x5-100SX,1000SX, I-Temp | |
| FSF1-C7-S13-10TR | 125M/1.25G | SM 10km | 1310nm | Duplex LC | 0~70°C | 2x5-100LX,1000LX | |
| FSF1-C7-S13-10TRi | 125M/1.25G | SM 10km | 1310nm | Duplex LC | -40~85°C | 2x5-100LX,1000LX, I-Temp | |
| FSF1-C7-S13-10T | 1.25G | SM 10km | 1310nm | Duplex LC | 0~70°C | 2x5-1000LX | |
| FSF1-C7-S13-10Ti | 1.25G | SM 10km | 1310nm | Duplex LC | -40~85°C | 2x5-1000LX, I-Temp | |
- Fast Ethernet 100BASE-SX @125M
- Gigabit Ethernet 1000BASE-SX @1.25G
- Fiber Channel 1GFC @1.0625G
- Compatible with IEEE802.3ah Fast Ethernet
- Compliant with IEEE802.3z Gigabit Ethernet
- Industry Standard 2x5 SFF Footprint
- 850m/1310nm FP laser transmitter
- Duplex LC connector
- Single 3.3V power supply
- AC-coupled LVPECL Differential inputs and outputs
- LVTTL Signal Detection Output
- Link distance 2km(100SX) and 550m(1000SX) over MM OM2 fiber
- Link distance 10km over SM fiber(100LX,1000LX)
- RoHS Compliant
