200G QSFP56 Loopback

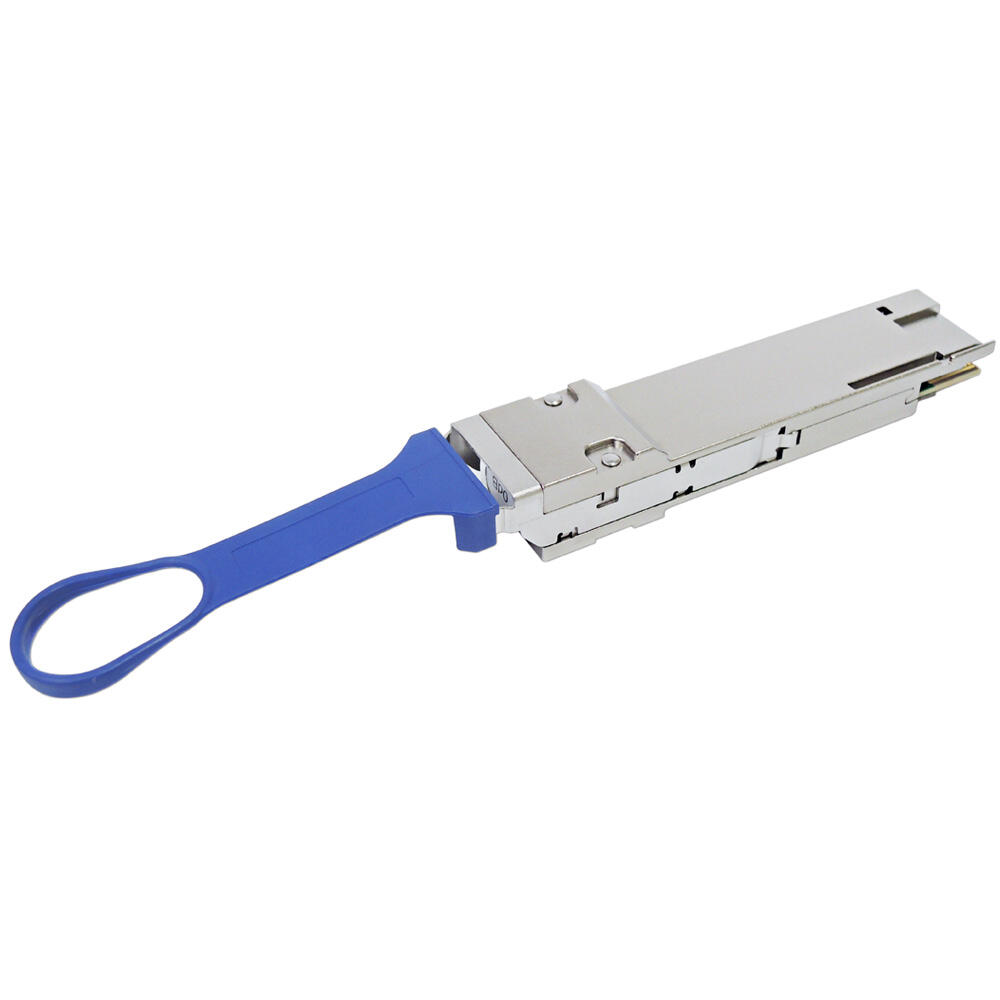

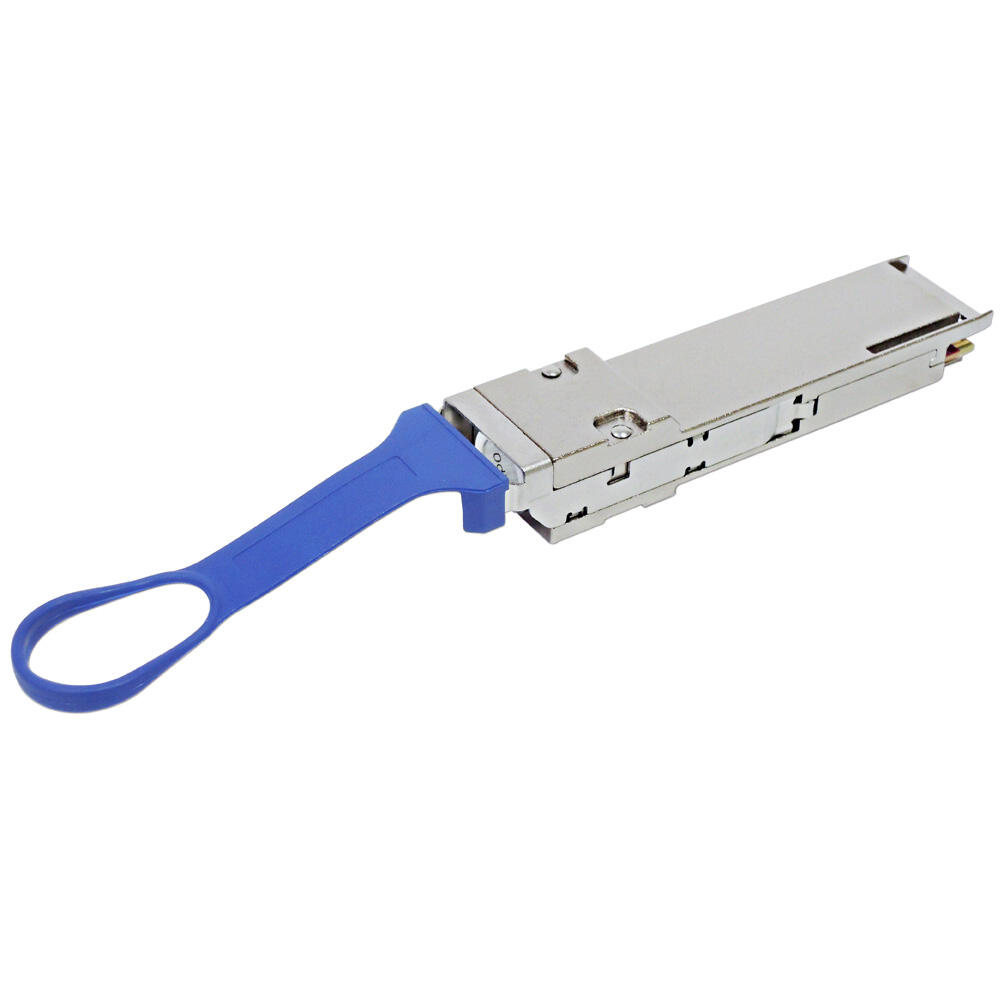

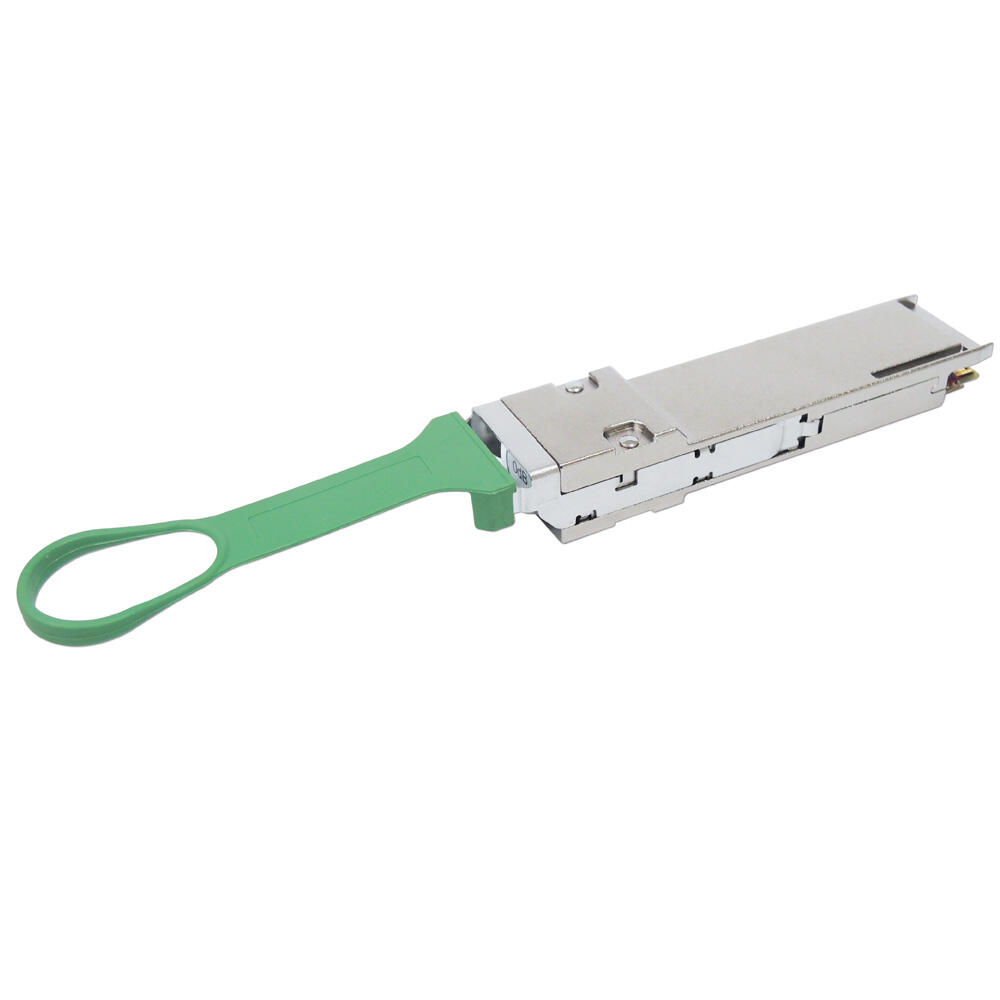

200G QSFP56 Electrical Passive Loopback 光纖模組
Hot Pluggable, 0~5dB Internal Attenuation, 0~3.5W Power Consumption
| 產品料號 | 資料傳輸率 | 內部衰減 | 功耗 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|
| FQ56-SX-XLB-xx-xx | 200G | 0~5dB | 0~3.5W | -40~85°C | QSFP56-200G-Loopback | |
- Board and System Level Testing
- System Test and Measurement
- Switch / Router Chamber Test
- Power Consumption Validation
- Compliant with SFF-8665 QSFP56 / QSFP28 MSA
- Compliant with IEEE 802.3bs 200GAUI-4 and 802.3bm CAUI-4 Interface
- Electrical Data Rate up to 56Gbps per Lane
- Hot Pluggable QSFP56 footprint
- 2-wire interface for management
- Single 3.3V power supply
- Different Option for Internal Attenuation and Power Consumption
- RoHS compliant
