200G QSFP56
200G QSFP56-SR4

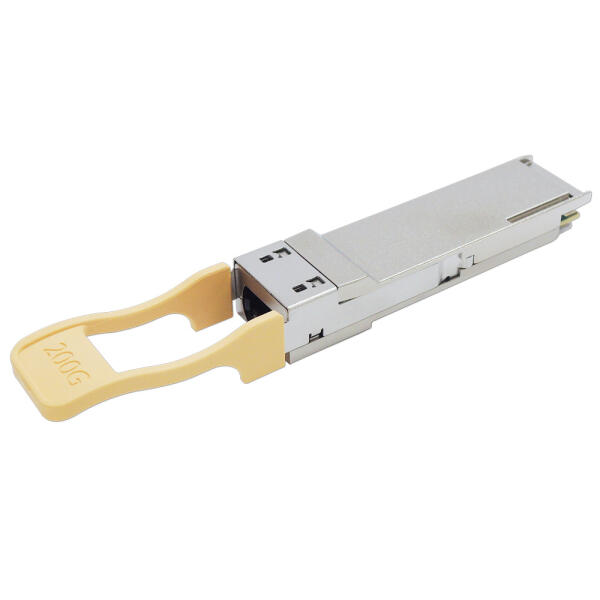

200G QSFP56 SR4 光纖模組
Hot Pluggable, MPO / MTP, 850nm VCSEL, Multi-Mode, OM3 70M / OM4 100M, OIF-CMIS / SFF-8636 Management & DDM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 溫度 | 備註 | |
|---|---|---|---|---|---|---|---|
| FQ56-S9-M85-X1D | 200G | 850nm | MPO/MTP | OM3 70m OM4 100m | 0~70°C | QSFP56-200G-SR4-Ethernet, Single-Rate |
- 200GBASE-SR4 Ethernet @212.5G
- Breakout to 4 x 50GBASE-SR Ethernet
- Infiniband HDR, XDR interconnect
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE802.3cd 200GBASE-SR4
- Compliant with SFF-8665 QSFP56 MSA
- Compliant with IEEE 802.3bs CAUI-4 Interface
- 4 independent full-duplex channels
- Optical Data Rate PAM4 26.5625GBd per Lane
- Electrical Data Rate PAM4 26.5625GBd per Lane
- Built in quad Tx CDR and Rx CDR (FQ56-S9-M85-X1D-CD1)
- DSP with built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP56 footprint
- 4CH 850nm VCSEL array transmitter
- 4CH PIN array receiver
- MPO-12 APC receptacle connector
- 2-wire interface for management and diagnostic monitor compliant with OIF-CMIS or SFF-8636
- Single 3.3V power supply
- Link distance 70m over OM3 fiber and 100m over OM4 fiber
- Maximum power consumption 5W
- RoHS compliant
