32G/25G SFP28
25G SFP28-BIDI

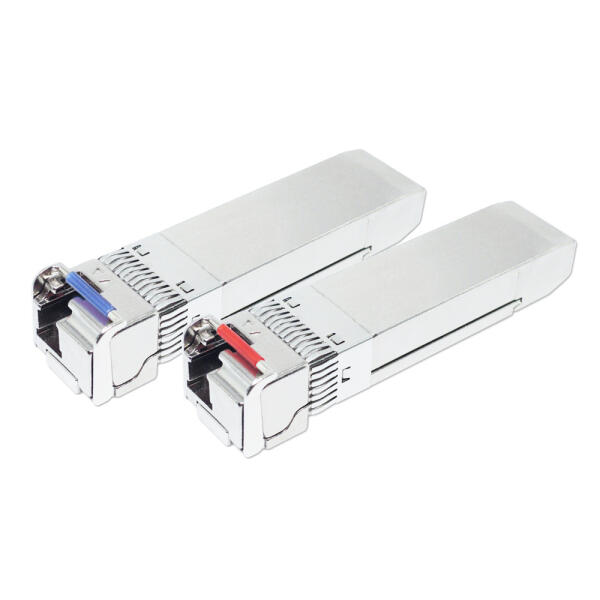

25G BiDi Single-Fiber SFP28 光纖模組
Hot Pluggable, BiDi LC, 1270nm / 1330nm, Single Mode, 10KM~20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-N8-C27-10DQ | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 10km | 0~70°C | SFP28-25G-BX10-27 | |
| FSPP-N8-C27-10DQi | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 10km | -40~85°C | SFP28-25G-BX10-27, I-Temp | |
| FSPP-N8-C33-10DQ | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 10km | 0~70°C | SFP28-25G-BX10-33 | |
| FSPP-N8-C33-10DQi | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 10km | -40~85°C | SFP28-25G-BX10-33, I-Temp | |
| FSPP-N8-C27-20DQ | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 20km | 0~70°C | SFP28-25G-BX20-27 | |
| FSPP-N8-C27-20DQi | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 20km | -40~85°C | SFP28-25G-BX20-27, I-Temp | |
| FSPP-N8-C33-20DQ | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 20km | 0~70°C | SFP28-25G-BX20-33 | |
| FSPP-N8-C33-20DQi | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 20km | -40~85°C | SFP28-25G-BX20-33, I-Temp | |
| FSPP-N8-C27-40DQ | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 40km | 0~70°C | SFP28-25G-BX40-27 | |
| FSPP-N8-C27-40DQi | 25G | Tx1270nm / Rx1330nm | BiDi LC | SM 40km | -40~85°C | SFP28-25G-BX40-27, I-Temp | |
| FSPP-N8-C33-40DQ | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 40km | 0~70°C | SFP28-25G-BX40-33 | |
| FSPP-N8-C33-40DQi | 25G | Tx1330nm / Rx1270nm | BiDi LC | SM 40km | -40~85°C | SFP28-25G-BX40-33, I-Temp | |
- 25GBASE Ethernet @25.78G
- CPRI Option #10 @24.33G
- eCPRI 5G Mobile Networks
- Compatible with IEEE802.3cc 25GBASE Ethernet
- Compliant with CPRI option10
- Compliant with SFF-8402 SFP28 MSA
- Data Rate up to 25.78Gbps
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable
- 1270nm DFB laser transmitter
- Simplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 10km~20km over SM fiber
- RoHS Compliant
