32G/25G SFP28
25G SFP28-CWDM 光纖模組
25G SFP28-CWDM 光纖模組

25G SFP28-CWDM

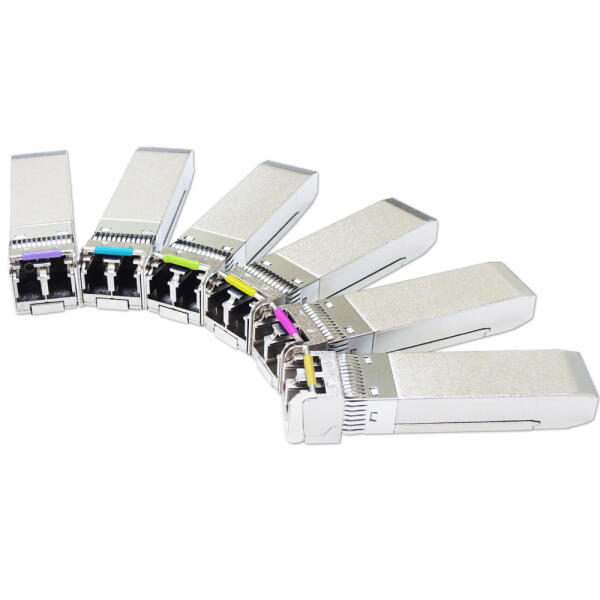

25G CWDM SFP28 光纖模組
Hot Pluggable, Duplex LC, CWDM DFB, Single Mode, 10KM


產品料號資料傳輸率波長連接器傳輸距離操作溫度備註規格書
FSPP-N7-Cxx-10DQ25GCWDM DFB 1270nm~1370nmDuplex LCSM 10km0~70°CSFP28 25G-CWDMxx-10km
(xx = 27~37), C-Temp
FSPP-N7-Cxx-10DQi25GCWDM DFB 1270nm~1370nmDuplex LCSM 10km-40~85°CSFP28 25G-CWDMxx-10km
(xx = 27~37), I-Temp

  • 25GBASE-LR Ethernet @25.78G
  • CPRI Option #10 @24.33G
  • eCPRI 5G Mobile Networks
  • CWDM Networks

  • Compatible with IEEE802.3cc 25GBASE-LR
  • Compliant with CPRI option10
  • Compliant with SFF-8402 SFP28 MSA
  • Data Rate up to 25.78Gbps
  • Built-in CDR on both Transmitter and Receiver
  • Hot Pluggable
  • Uncooled CWDM DFB laser transmitter
  • Duplex LC connectort
  • 2-wire interface for management and diagnostic monitor compliant with SFF-8472
  • Single +3.3V power supply
  • Link distance 10km over SM fiber
  • Maximum power consumption 1.4W
  • RoHS Compliant
