32G/25G SFP28

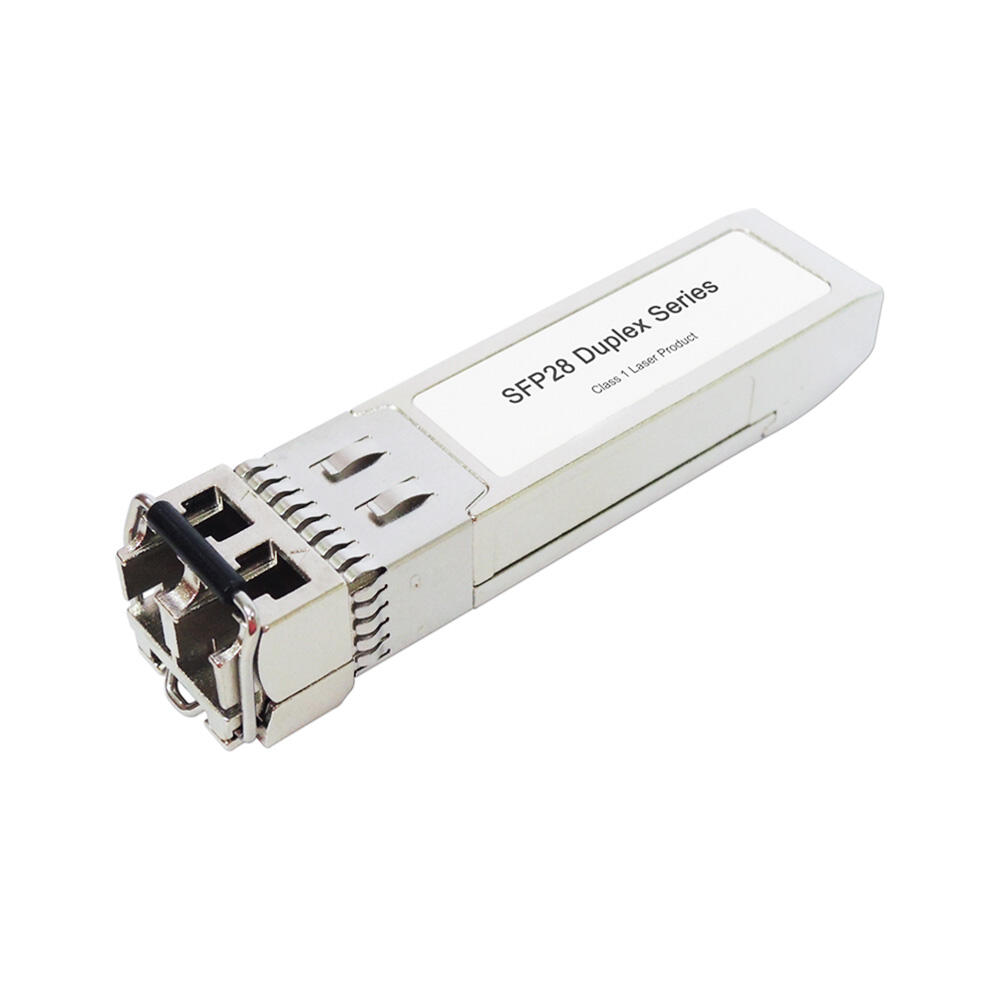

25G SFP28-Duplex

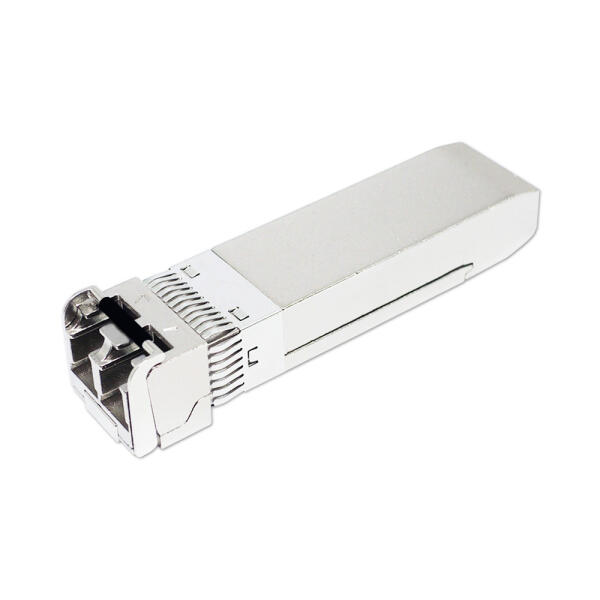

25G SFP28 SR/eSR 光纖模組
Hot Pluggable, Duplex LC, 850nm VCSEL, Multi-Mode, 100M~300M

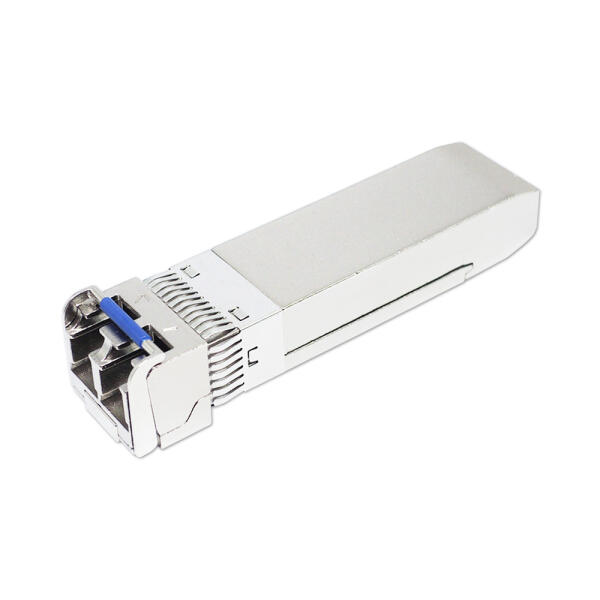

25G SFP28 LR/LR20 光纖模組
Hot Pluggable, Duplex LC, 1310nm DFB, Single Mode, 300M~20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-N7-M85-X1DQ | 25G | 850nm | Duplex LC | OM4 100m | 0~70°C | SFP28-25G-SR | |
| FSPP-N7-M85-X1DQi | 25G | 850nm | Duplex LC | OM4 100m | -40~85°C | SFP28-25G-SR, I-Temp | |
| FSPP-N7-M85-X3DQ | 25G | 850nm | Duplex LC | OM4 300m | 0~70°C | SFP28-25G-eSR | |
| FSPP-N7-M85-X3DQi | 25G | 850nm | Duplex LC | OM4 300m | -40~85°C | SFP28-25G-eSR, I-Temp | |
| FSPP-N7-M85-X3DR | 25G | 850nm | Duplex LC | OM4 300m | 0~70°C | SFP28-25G-eSR, Dual-Rate | |
| FSPP-N7-M85-X3DRi | 25G | 850nm | Duplex LC | OM4 300m | -40~85°C | SFP28-25G-eSR, Dual-Rate, I-Temp | |
| FSPP-N7-S13-02DQ | 25G | 1310nm | Duplex LC | SM 2km | 0~70°C | SFP28-25G-LRL 2km | |
| FSPP-N7-S13-02DQi | 25G | 1310nm | Duplex LC | SM 2km | -40~85°C | SFP28-25G-LRL 2km, I-Temp | |
| FSPP-N7-S13-10DQ | 25G | 1310nm | Duplex LC | SM 10km | 0~70°C | SFP28-25G-LR, C-Temp | |
| FSPP-N7-S13-10DQi | 25G | 1310nm | Duplex LC | SM 10km | -40~85°C | SFP28-25G-LR, I-Temp | |
| FSPP-N7-S13-10DR | 25G | 1310nm | Duplex LC | SM 10km | 0~70°C | SFP28-10G-25G-LR, Dual-Rate | |
| FSPP-N7-S13-10DRi | 25G | 1310nm | Duplex LC | SM 10km | -40~85°C | SFP28-10G-25G-LR, Dual-Rate, I-Temp | |
| FSPP-N7-S13-20DQ | 25G | 1310nm | Duplex LC | SM 20km | 0~70°C | SFP28-25G-LR20 | |
| FSPP-N7-S13-20DQi | 25G | 1310nm | Duplex LC | SM 20km | -40~85°C | SFP28-25G-LR20, I-Temp | |
- 25GBASE-SR Ethernet @25.78G
- CPRI Option #10 @24.33G
- eCPRI 5G Mobile Networks
- Compliant with IEEE802.3by 25GBASE-SR/LR
- Compliant with CPRI option10
- Compliant with SFF-8402 SFP28 MSA
- Data Rate up to 25.78Gbps
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable
- 850nm VCSEL laser transmitter (SFP28-SR, eSR)
- 1310nm DFB laser transmitter (SFP28-LR, LR20)
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 100m~300m over MM fiber (SFP28-SR, eSR)
- Link distance 300m~10km over SM fiber (SFP28-LR, LR20)
- RoHS Compliant
