32G/25G SFP28
25G SFP28-LWDM

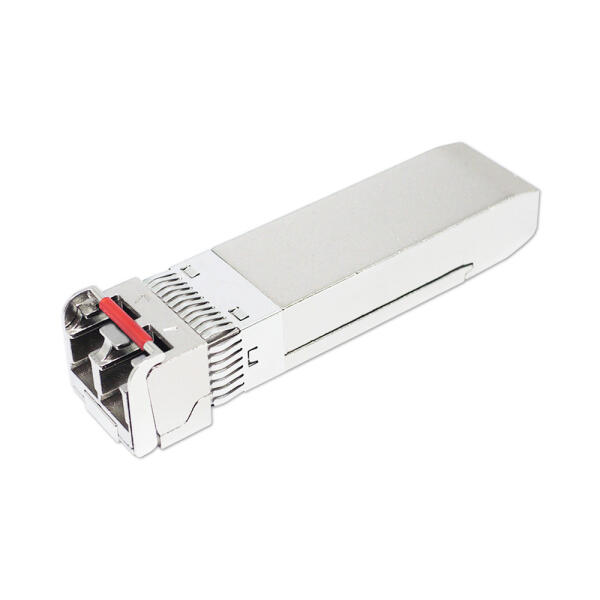

25G LWDM SFP28 光纖模組
Hot Pluggable, Duplex LC, 800GHz LAN-WDM, Single Mode, 40KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-N7-Lxx-40DQ | 25G | LAN-WDM | Duplex LC | SM 40km | 0~70°C | SFP28-25G-LWDM O-Band 40km | |
| FSPP-N7-Lxx-40DQi | 25G | LAN-WDM | Duplex LC | SM 40km | -40~85°C | SFP28-25G-LWDM O-Band 40km, I-Temp | |
| FSPP-N7-Lxx-40DM | 25G | LAN-WDM | Duplex LC | SM 40km | 0~70°C | SFP28-25G-LWDM O-Band 40km, Multi-Rate | |
| FSPP-N7-Lxx-40DMi | 25G | LAN-WDM | Duplex LC | SM 40km | -40~85°C | SFP28-25G-LWDM O-Band 40km, Multi-Rate, I-Temp | |
| FSPP-N7-Lxx-40DM-DML | 25G | LAN-WDM | Duplex LC | SM 40km | 0~70°C | SFP28-25G-LWDM O-Band 40km, Multi-Rate, DML | |
| FSPP-N7-Lxx-40DMi-DML | 25G | LAN-WDM | Duplex LC | SM 40km | 40~85°C | SFP28-25G-LWDM O-Band 40km, Multi-Rate, DML, I-Temp | |
- 25GBASE-ER Ethernet @25.78G
- CPRI Option #10 @24.33G
- Compatible with IEEE802.3cc 25GBASE-ER
- Compliant with SFF-8402 SFP28 MSA
- Built-in CDR on both Transmitter and Receiver
- 800GHz ITU Grid, cooled O-Band LWDM EML laser transmitter
- APD Receiver
- Hot Pluggable
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 40km over SM fiber
- Maximum Power consumption 2.3W
- RoHS Compliant
