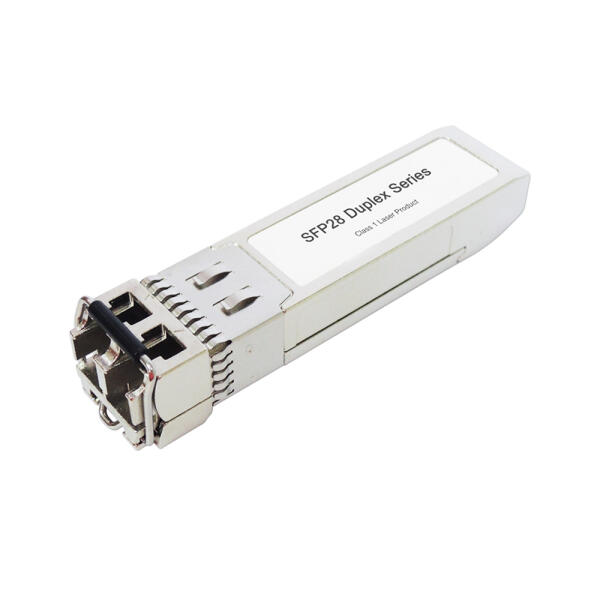

32G/25G SFP28
25G SFP28 SR, COB
25G SFP28 SR/eSR 光纖模組
Hot Pluggable, Dual LC, 850nm VCSEL, Multi-Mode, OM4 100M~300M
Chip On Board (COB) Solution
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FSPP-N7-M85-X1DQ | 25G | 850nm | Dual LC | OM4 100m | 0~70°C | SFP28-25G-SR, COB | |
| FSPP-N7-M85-X1DQi | 25G | 850nm | Dual LC | OM4 100m | -40~85°C | SFP28-25G-SR, COB, I-Temp | |
| FSPP-N7-M85-X2DQ | 25G | 850nm | Dual LC | OM4 200m | 0~70°C | SFP28-25G-SR OM4 200m, COB | |
| FSPP-N7-M85-X2DQi | 25G | 850nm | Dual LC | OM4 200m | -40~85°C | SFP28-25G-SR OM4 200m, COB, I-Temp | |
| FSPP-N7-M85-X3DQ | 25G | 850nm | Dual LC | OM4 300m | 0~70°C | SFP28-25G-eSR OM4 300m, COB | |
| FSPP-N7-M85-X3DQi | 25G | 850nm | Dual LC | OM4 300m | -40~85°C | SFP28-25G-eSR OM4 300m, COB, I-Temp | |
- 25GBASE-SR Ethernet @25.78G
- CPRI Option #10 @24.33G
- eCPRI 5G Mobile Networks
- Compliant with IEEE802.3by 25GBASE-SR
- Compliant with CPRI option10
- Compliant with SFF-8402 SFP28 MSA
- Data Rate up to 25.78Gbps
- Built-in CDR on both Transmitter and Receiver
- Hot Pluggable
- Chip On Board (COB) based 850nm VCSEL laser transmitter & PIN receiver
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8472
- Single +3.3V power supply
- Link distance 100m~300m over MM fiber
- Maximum Power consumption 1W
- RoHS Compliant
