100G QSFP28

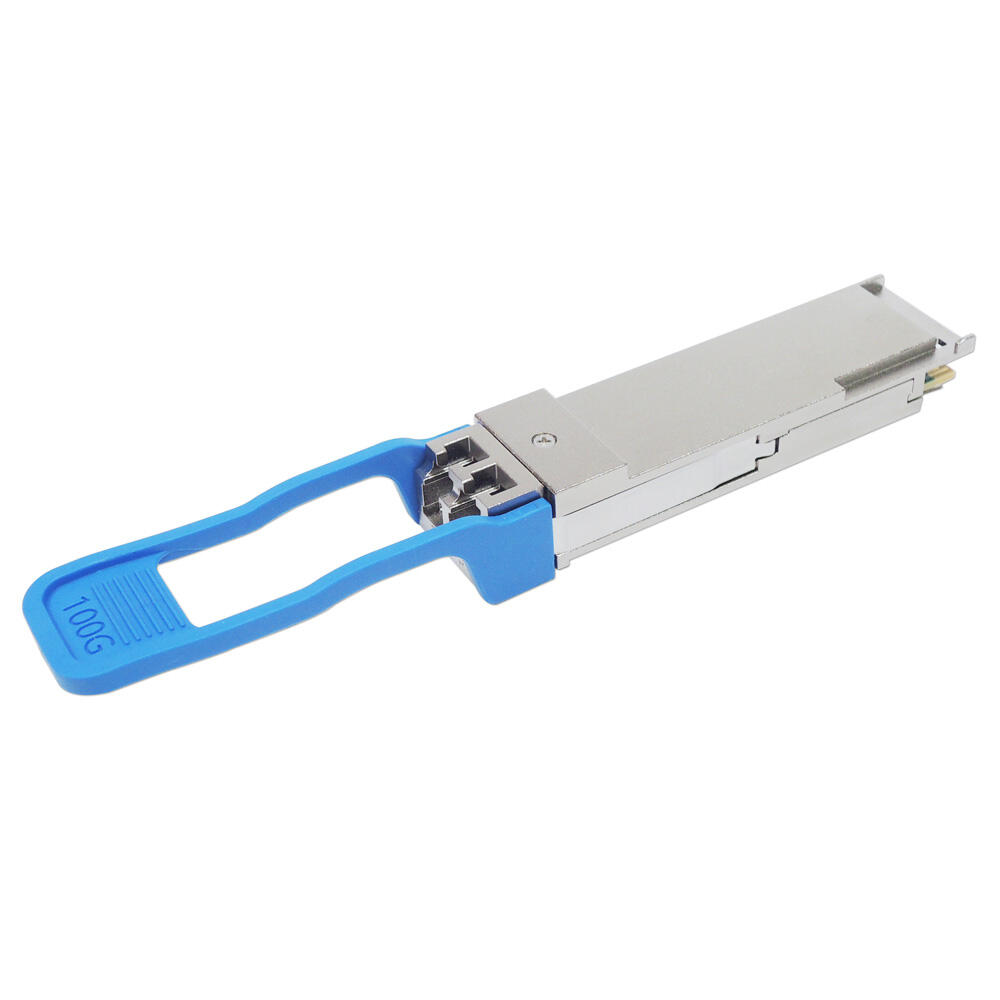

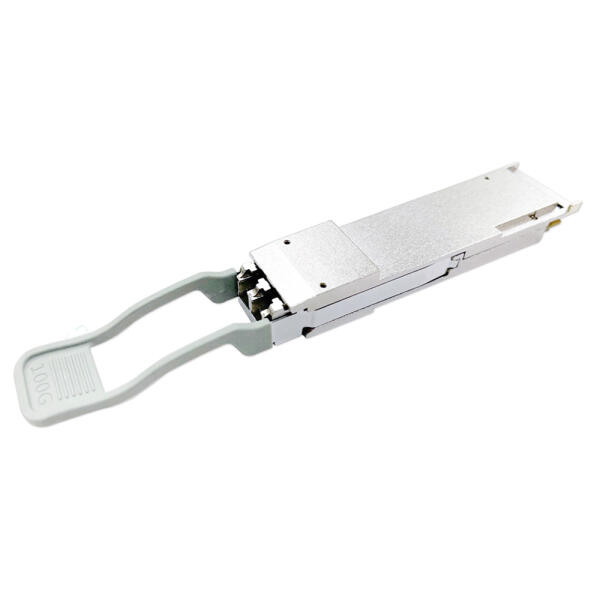

40/100G-QSFP28-SRBD
40G/100G Dual-Rate QSFP28 SRBD 光纖模組
Hot Pluggable, Duplex Bidi LC, 850 / 908nm VCSEL, MMF 100M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQ28-KC-C85-X1DR | 40/100G | 850 / 908nm | Duplex Bidi LC | OM3 70m OM4 100m | 0~70°C | QSFP28-40G-100G-SRBD-Ethernet, Dual-Rate | |
- 100GBASE-SR2 BiDi Ethernet @103.1G
- 40GBASE-SR2 BiDi Ethernet @41.3G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with 100GBASE-SR2 BiDi and 40GBASE-SR2 BiDi
- Compliant with SFF-8665 QSFP28 MSA
- Compliant with IEEE 802.3bm CAUI-4 Interface
- Dual wavelength 850/908nm VCSEL Bi-Directional optical interface
- Optical Data Rate PAM4 2x10.3125GBd / 26.5625GBd
- Electrical Data Rate NRZ 4x10.3125Gbps / 25.78125Gbps
- Data Rate changed by Host software command ( CDR bypass )
- Built in quad Tx CDR and Rx CDR
- Hot Pluggable QSFP28 footprint
- Dual Bidi LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8636
- Single 3.3V power supply
- Link distance 100m over OM4 fiber and 70m over MM OM3 fiber
- Maximum power consumption 3.5W
- RoHS compliant
