400G OSFP112/QSFP112
400G QSFP112-SR4

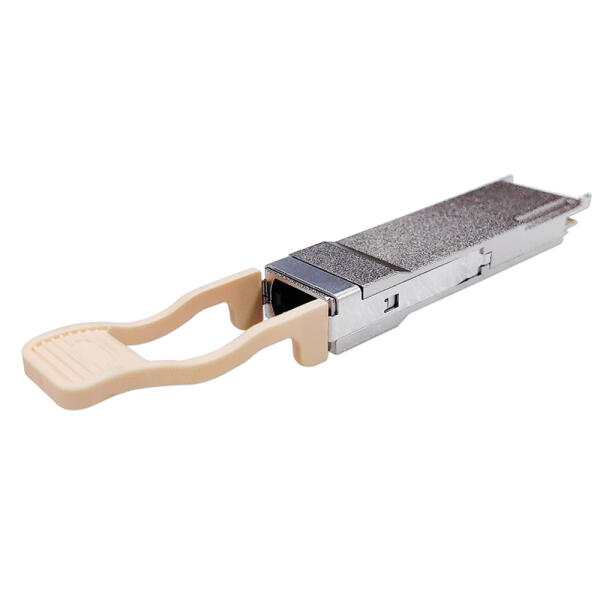

400G QSFP112 SR4 光纖模組
Hot Pluggable, MPO / MTP, 850nm, OM3 60M / OM4 100M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQA2-T9-M85-X1D | 400Gbps | 850nm | MPO/MTP | MM 60m (OM3) MM 100m (OM4) | 0~70°C | QSFP112-400G-SR4, C-Temp | |
- 400GBASE-SR4 Ethernet @425G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE 802.db 400GBASE-SR4
- Compliant with QSFP112 MSA V2.0
- Compliant with IEEE 802.3ck 400GAUI-4 Interface
- 4 Parallel full-duplex Lanes
- Optical Data Rate PAM4 53.125GBd per Lane
- Electrical Data Rate PAM4 53.125GBd per Lane
- Support aggregated data rate up to 425Gb/s
- Built in quad Tx CDR and Rx CDR
- Support KP4 FEC at 400Gbps
- Hot Pluggable QSFP112 footprint
- MPO-12 APC connector
- 2-wire interface for management and diagnostic monitor compliant with OIF-CMIS
- Single 3.3V power supply
- Link distance 100m over OM4 fiber and 60m over MM OM3 fiber
- Operating Temperature 0~+70°C
- Maximum power consumption 8W
- RoHS compliant
