40G QSFP+
40G QSFP+ eSR4

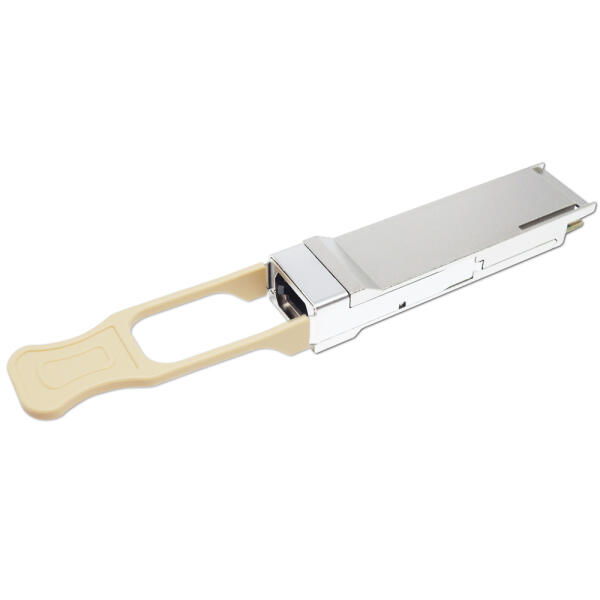

40G QSFP+ eSR4 光纖模組
Hot Pluggable, MPO / MTP, 850nm VCSEL, Multi-Mode, OM3 for 300M / OM4 for 400M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQFP-I9-M85-X3D | 40G | 850nm | MPO/MTP | OM3 300m OM4 400m | 0~70°C | QSFP+ 40G-eSR4 | |
- 40Gb Ethernet
- OTN OTU3 @43.01G, OTU3e2 @44.58G
- Breakout to 4 x 10GBASE-SR Ethernet
- InfiniBand QDR interconnects
- Data Center & Storage
- Datacom / Telecom Switch & Router
- Compliant with IEEE802.3ba 40GBASE-SR4
- Compliant with SFF-8436 QSFP+ MSA
- Support InfiniBand QDR
- 4 independent full-duplex channels
- Up to 11.2Gbps data rate per channel
- Hot Pluggable
- 850nm VCSEL array transmitter
- MPO-12 receptacle connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 300m over MM OM3 fiber and 400m over MM OM4 fiber
- RoHS Compliant
