40G QSFP+
40G QSFP+ LR4

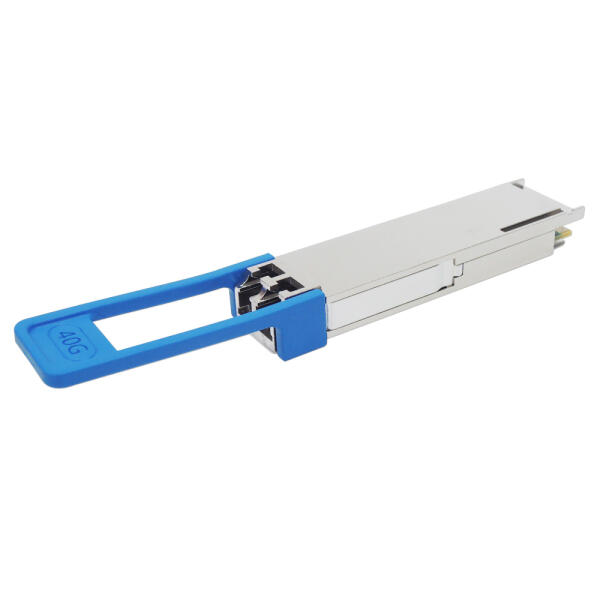

40G QSFP+ LR4 光纖模組
Hot Pluggable, Duplex LC, CWDM DFB, Single Mode, 10KM-20KM
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQFP-I7-C13-10D | 40G | CWDM DFB | Duplex LC | SM 10km | 0~70°C | QSFP+40G-LR4 COB, C-Temp | |
| FQFP-I7-C13-10Di | 40G | CWDM DFB | Duplex LC | SM 10km | -40~85°C | QSFP+40G-LR4 COB, I-Temp | |
| FQFP-I7-C13-20D | 40G | CWDM DFB | Duplex LC | SM 20km | 0~70°C | QSFP+ 40G-LR4 20km | |
| FQFP-I7-C13-20Di | 40G | CWDM DFB | Duplex LC | SM 20km | -40~85°C | QSFP+ 40G-LR4 20km, I-Temp | |
- 40GBASE-LR4 Ethernet
- OTN OTU3 @43.01G, OTU3e2 @44.58G
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compliant with IEEE802.3ba 40GBASE-LR4
- Compliant to SFF-8436 QSFP+ MSA
- Supports QDR / DDR InfiniBand
- 4CH CWDM MUX / DEMUX design
- Data Rate up to 11.2Gbps per Lane
- Hot Pluggable
- CWDM DFB transmitter
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 10km~20km over SM fiber
- Maximum Power consumption 3.5W
- RoHS compliant
