40G QSFP+

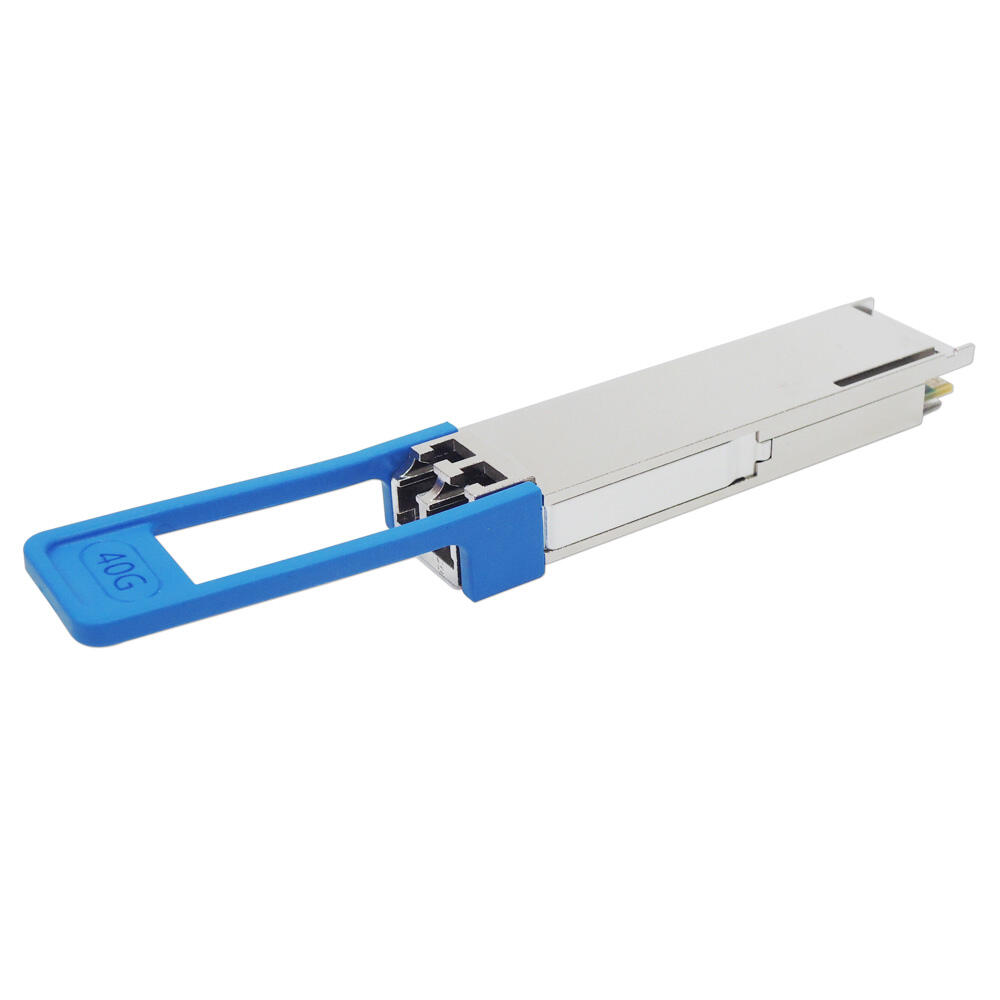

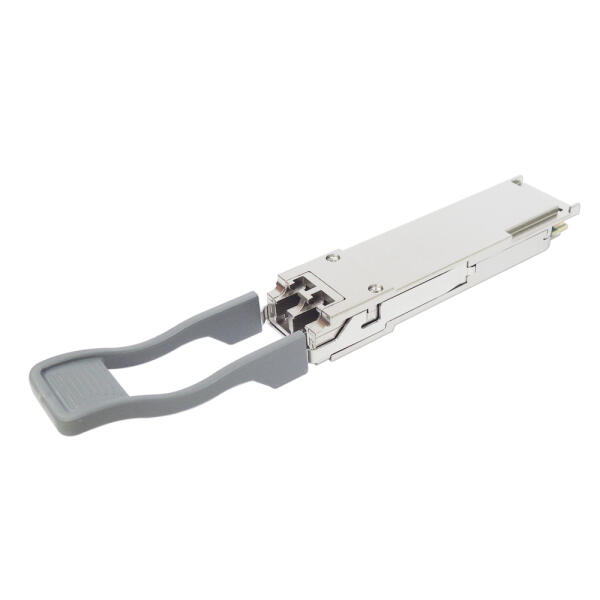

40G QSFP+ SWDM4
40G QSFP+ SWDM4 光纖模組
Hot Pluggable, Duplex LC, SWDM VCSEL, Multi-Mode, OM3 for 240M / OM4 for 350M / OM5 for 440M
| 產品料號 | 資料傳輸率 | 波長 | 連接器 | 傳輸距離 | 操作溫度 | 備註 | 規格書 |
|---|---|---|---|---|---|---|---|
| FQFP-I7-S85-X2D | 40G | SWDM VCSEL | Duplex LC | OM3 240m OM4 350m OM5 440m | 0~70°C | QSFP+40G-SWDM4, C-Temp | |
- 40GBASE Ethernet over duplex MMF
- Data Centers Switch Interconnect
- Server and Storage Area Network Interconnect
- Compatible with IEEE802.3ba 40GBASE Ethernet
- Compliant with SFF-8436 QSFP+ MSA
- Compliant with 40G SWDM4 MSA
- 4CH SWDM MUX / DEMUX design
- Supports 41.2Gbps aggregate bit rate
- Hot Pluggable
- 4x10Gb/s VCSEL SWDM transmitter
- Duplex LC connector
- XLPPI electrical interface
- 2-wire interface for management and diagnostic monitor compliant with SFF-8436, SFF-8636
- Single 3.3V power supply
- Link distance 240m over OM3 fiber, 350m over OM4 fiber and 440m over OM5 fiber
- Operating Temperature 0~+70°C
- Maximum Power consumption 3.5W
- RoHS compliant
